Garage Door Opener

DC Brushless Motor

Advanced motor technology engineered for quiet, efficient, and long-lasting performance.

Versatile Application

Perfect for garage, villa, apartment, and gate.

50m Remote Control

Wireless remote with 50-meter range for convenient operation from anywhere

Built-in Lamp

Automatic lighting activates when door operates for safety and convenience

Category: Door Opener
Tags:
Radar and Sensors Garage Door Opener Industrial Door Opener High Speed Opener

The Kaiyisi CKM-M is a high-performance Smart Garage Door Opener with an Automatic Garage Door Motor in a compact ABS housing. It delivers 110W-240W power, 600N-1500N pulling force, and 150-180mm/s operating speed for 8-18㎡ sectional doors. With AC230V/AC120V input and a 24V DC motor, this CE garage door opener suits residential garages, villas, plus compatible motor for automatic gate applications.

Each Garage Door Opener can be configured for opening size, operating frequency, installation environment, control method, and safety requirements. It can serve as a replacement Chain Drive Garage Door Motor or an upgrade for a compatible sectional door.

  • Powerful Motor & Wide Compatibility

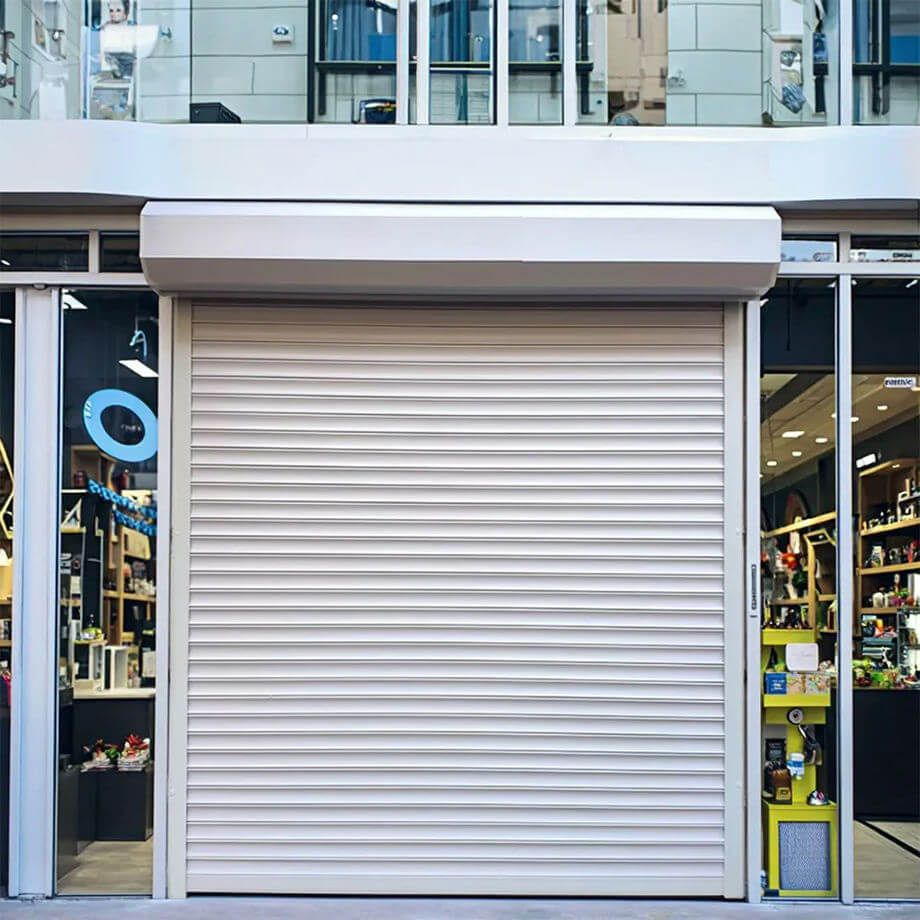

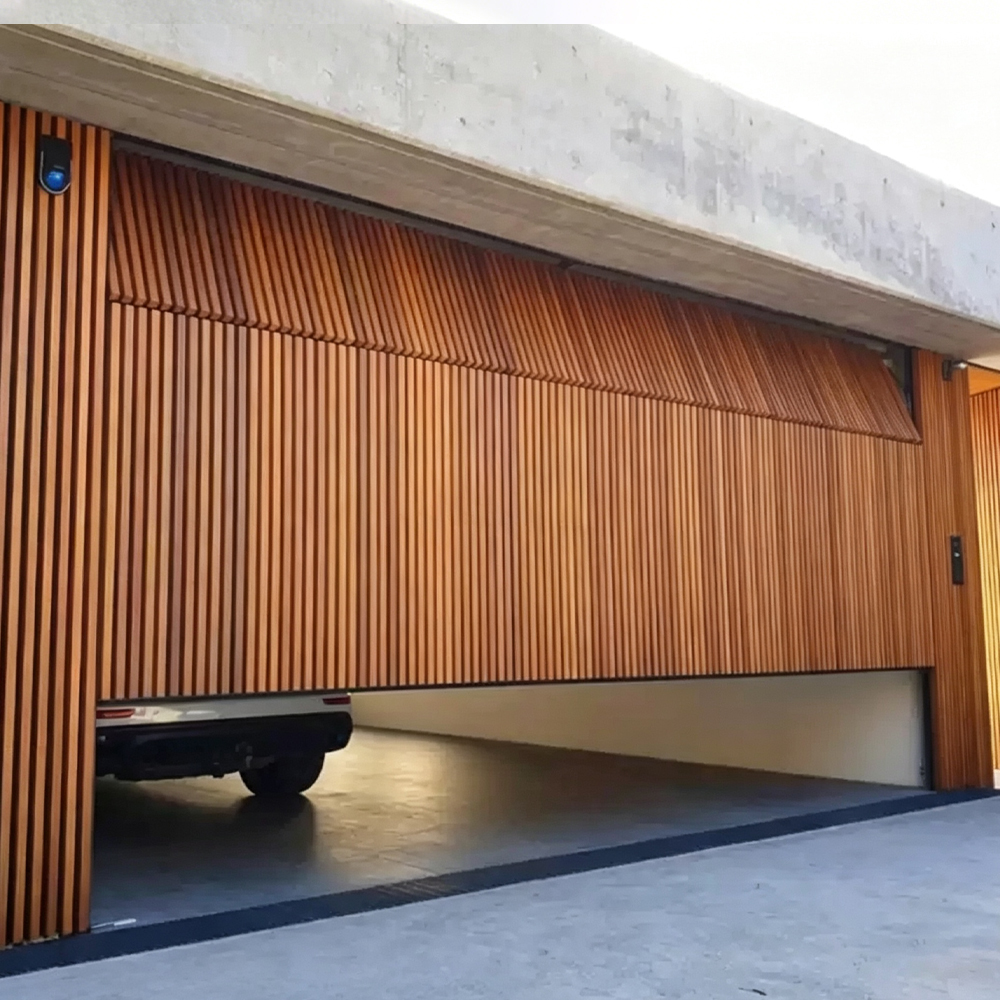

    The motor range supports compatible sectional and rolling doors across residential and light-commercial settings, with output matched to door weight and size for stable operation.

  • Durable Design & Auto‑Lighting

    Premium ABS housing and an automatic built-in lamp give this Garage Door Motor a compact form suited to residential installations. The Garage Door Opener is designed for dependable everyday use.

  • Smart Remote & WiFi Connectivity

    A 433.92MHz rolling-code remote plus built-in WiFi enables smartphone access through this Smart Garage Door Opener. The system adds connected control to a conventional Chain Drive Garage Door Motor setup.

  • Warranty & Support

    A 2-year warranty covers the Automatic Garage Door Motor, with onsite training and after-sales support available to assist with Garage Door Opener installation and maintenance.

Garage Door Opener

The Kaiyisi CKM-M is a quiet Garage Door Motor with WiFi control, remote access, and automatic lighting. As a smart Garage Door Opener, it provides convenient daily operation through a dependable Automatic Garage Door Motor system.

Remote control starts smooth, quiet movement for large residential and light-commercial doors. The auto-light improves visibility, while the ABS housing keeps the unit compact. This Garage Door Opener is supported by a 5-year warranty.

Technical Specifications

Garage Door Opener Detailed Technical Specifications

Main Material
ABS
Application
Garage, Gate, auto door, Hotel, Villa, Apartment, Other
Feature
Easy Operation
After-sale Service
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Other
Project Solution Capability
3D model design, total solution for projects, Cross Categories Consolidation, Others
Design Style
Modern
Place of Origin
Anhui, China
Ambient Temperature
-20℃ - +50℃

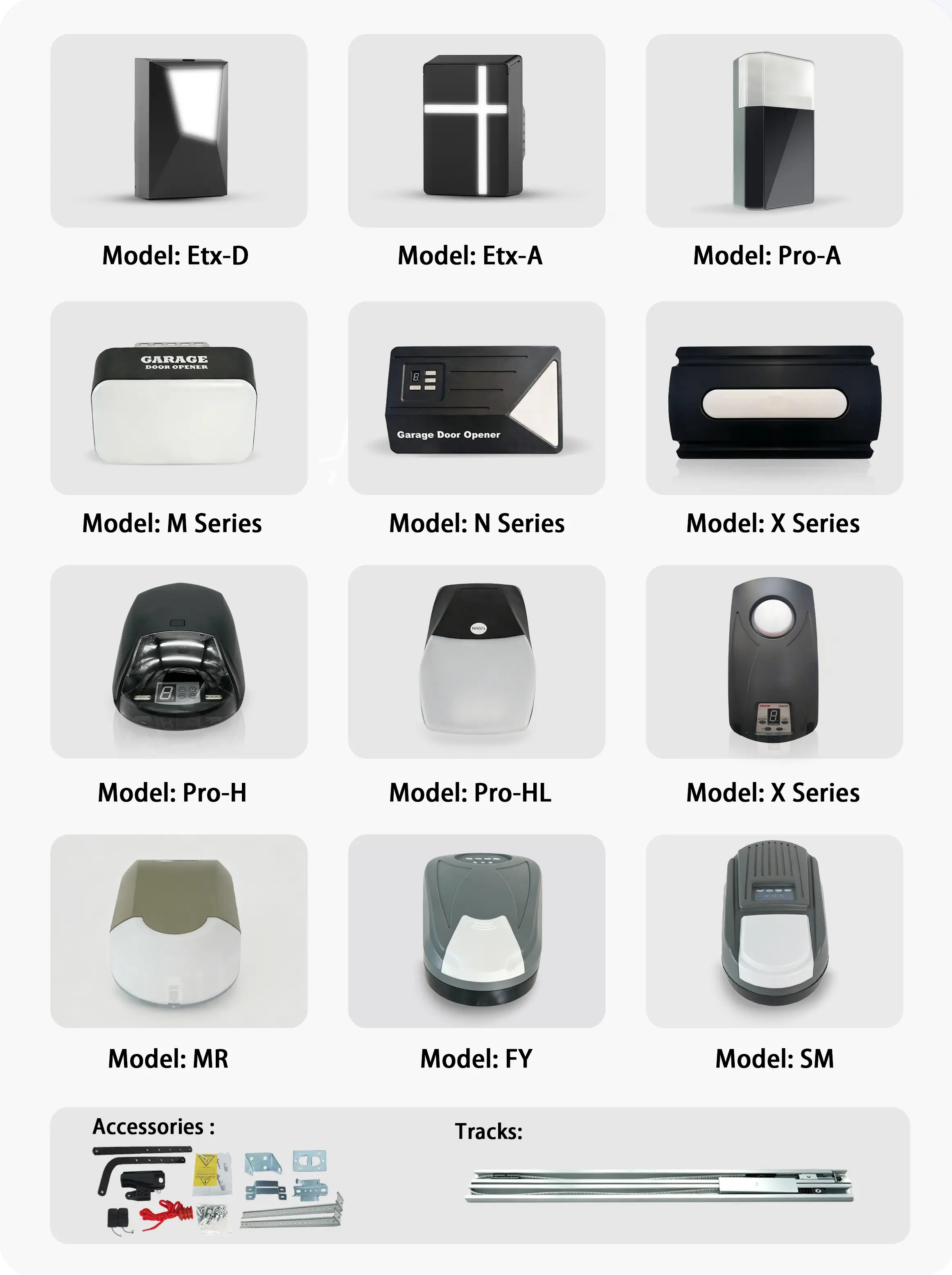

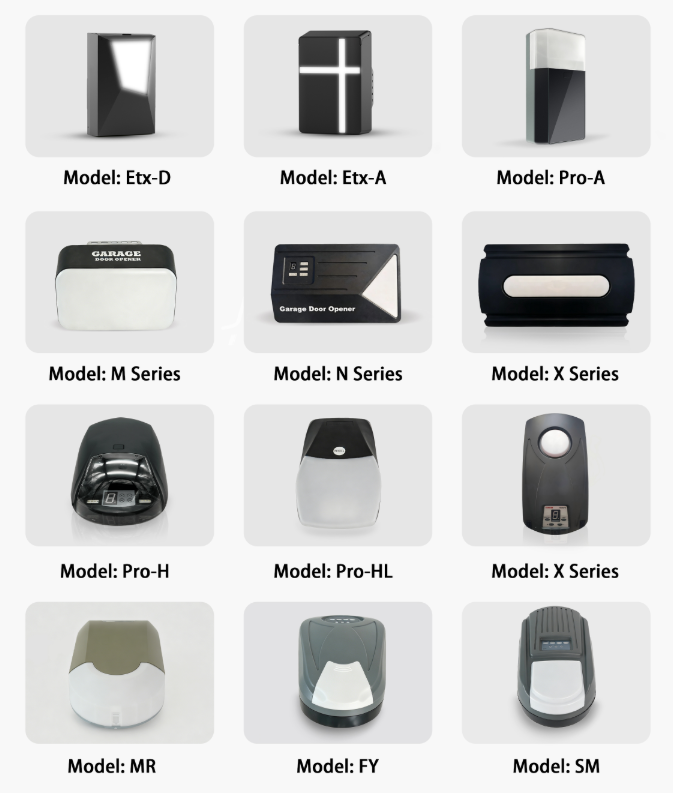

MODELS & TECHNICAL DATA

Best Garage Door Opener Models For Industrial Or Business Needs

Compare opening size, wind exposure, thermal requirement, installation space, traffic frequency, and control method. Each model below is followed by its matching specification table. Final performance is confirmed against the chosen model and project drawing.

01 MODEL & SPECIFICATIONS

ETX-A Series Garage Door Opener

ETX-A Series Garage Door Opener

ETX-A and ETX-D models provide 600N to 1500N pull force for 10㎡ to 18㎡ doors, with built-in WiFi and 250mm/s operation for connected residential use.

01
HIGH PERFORMANCE RANGE

ETX-A ETX-D series parameters

Model AT600 AT800 AT1000 AT1200 AT1500
Input voltage 110-120VAC/230-240VAC 50/60Hz 110-120VAC/230-240VAC 50/60Hz 110-120VAC/230-240VAC 50/60Hz 110-120VAC/230-240VAC 50/60Hz 110-120VAC/230-240VAC 50/60Hz
Power input 200W 235W 245W 260W 300W
Max. pulling force 600N 800N 1000N 1200N 1500N
Opening speed 250mm/s 250mm/s 250mm/s 250mm/s 250mm/s
Lamp LED LED LED LED LED
Radio frequency 433.92MHz 433.92MHz 433.92MHz 433.92MHz 433.92MHz
Working temperature -20～+40℃ -20～+40℃ -20～+40℃ -20～+40℃ -20～+40℃
Door area 10m² 12m² 14m² 16m² 18m²
02 MODEL & SPECIFICATIONS

ETX-D Series Garage Door Opener

ETX-D Series Garage Door Opener

The ETX-D offers the same 600N to 1500N range for 10㎡ to 18㎡ doors, combining built-in WiFi with 250mm/s operation for convenient smart control.

02
HIGH PERFORMANCE RANGE

ETX-A ETX-D series parameters

Model AT600 AT800 AT1000 AT1200 AT1500
Input voltage 110-120VAC/230-240VAC 50/60Hz 110-120VAC/230-240VAC 50/60Hz 110-120VAC/230-240VAC 50/60Hz 110-120VAC/230-240VAC 50/60Hz 110-120VAC/230-240VAC 50/60Hz
Power input 200W 235W 245W 260W 300W
Max. pulling force 600N 800N 1000N 1200N 1500N
Opening speed 250mm/s 250mm/s 250mm/s 250mm/s 250mm/s
Lamp LED LED LED LED LED
Radio frequency 433.92MHz 433.92MHz 433.92MHz 433.92MHz 433.92MHz
Working temperature -20～+40℃ -20～+40℃ -20～+40℃ -20～+40℃ -20～+40℃
Door area 10m² 12m² 14m² 16m² 18m²
03 MODEL & SPECIFICATIONS

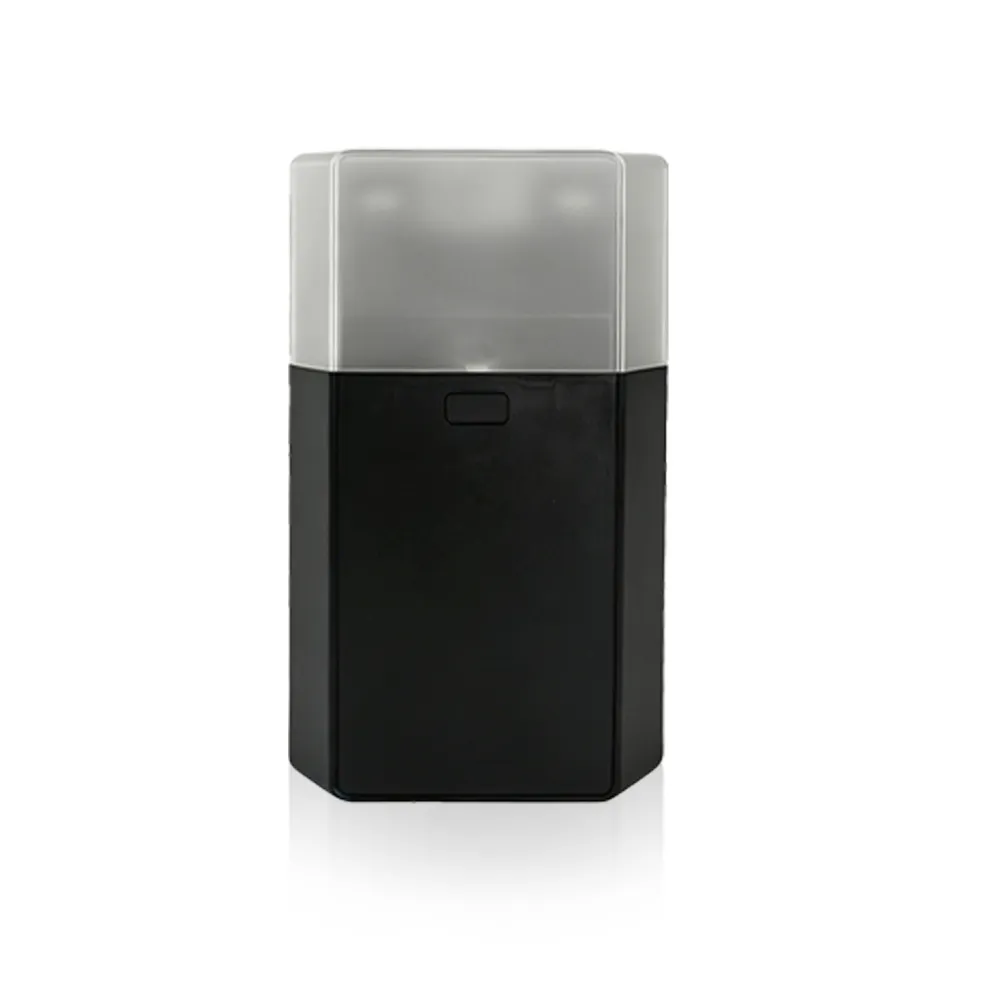

Pro-A Garage Door Opener

Pro-A Garage Door Opener

Pro-A supports 600N to 1500N pull force for doors up to 18㎡, with 250mm/s operation and 110-240VAC input. An optional WiFi module adds connected control.

03
STANDARD CONFIGURATION

PRO-A PRO-H series parameters

Model PA600 PA800 PA1000 PA1200 PA1500
Input voltage 230-240VAC 50/60Hz 230-240VAC 50/60Hz 230-240VAC 50/60Hz 230-240VAC 50/60Hz 230-240VAC 50/60Hz
Power input 200W 235W 245W 260W 300W
Max. pulling force 600N 800N 1000N 1200N 1500N
Opening speed 160mm/s 160mm/s 160mm/s 160mm/s 160mm/s
Lamp LED LED LED LED LED
Radio frequency 433.92MHz 433.92MHz 433.92MHz 433.92MHz 433.92MHz
Working temperature -20～+40C -20~+40℃ -20～+40C -20~+40C -20~+40C
Door area 10m² 12m² 14m² 16m² 18m²
04 MODEL & SPECIFICATIONS

Pro-H Garage Door Opener

Pro-H Garage Door Opener

Pro-H and Pro-HL support 600N to 1500N pull force for doors up to 18㎡, with 250mm/s operation and 110-240VAC input. Optional WiFi provides remote access.

04
STANDARD CONFIGURATION

PRO-A PRO-H series parameters

Model PA600 PA800 PA1000 PA1200 PA1500
Input voltage 230-240VAC 50/60Hz 230-240VAC 50/60Hz 230-240VAC 50/60Hz 230-240VAC 50/60Hz 230-240VAC 50/60Hz
Power input 200W 235W 245W 260W 300W
Max. pulling force 600N 800N 1000N 1200N 1500N
Opening speed 160mm/s 160mm/s 160mm/s 160mm/s 160mm/s
Lamp LED LED LED LED LED
Radio frequency 433.92MHz 433.92MHz 433.92MHz 433.92MHz 433.92MHz
Working temperature -20～+40C -20~+40℃ -20～+40C -20~+40C -20~+40C
Door area 10m² 12m² 14m² 16m² 18m²
05 MODEL & SPECIFICATIONS

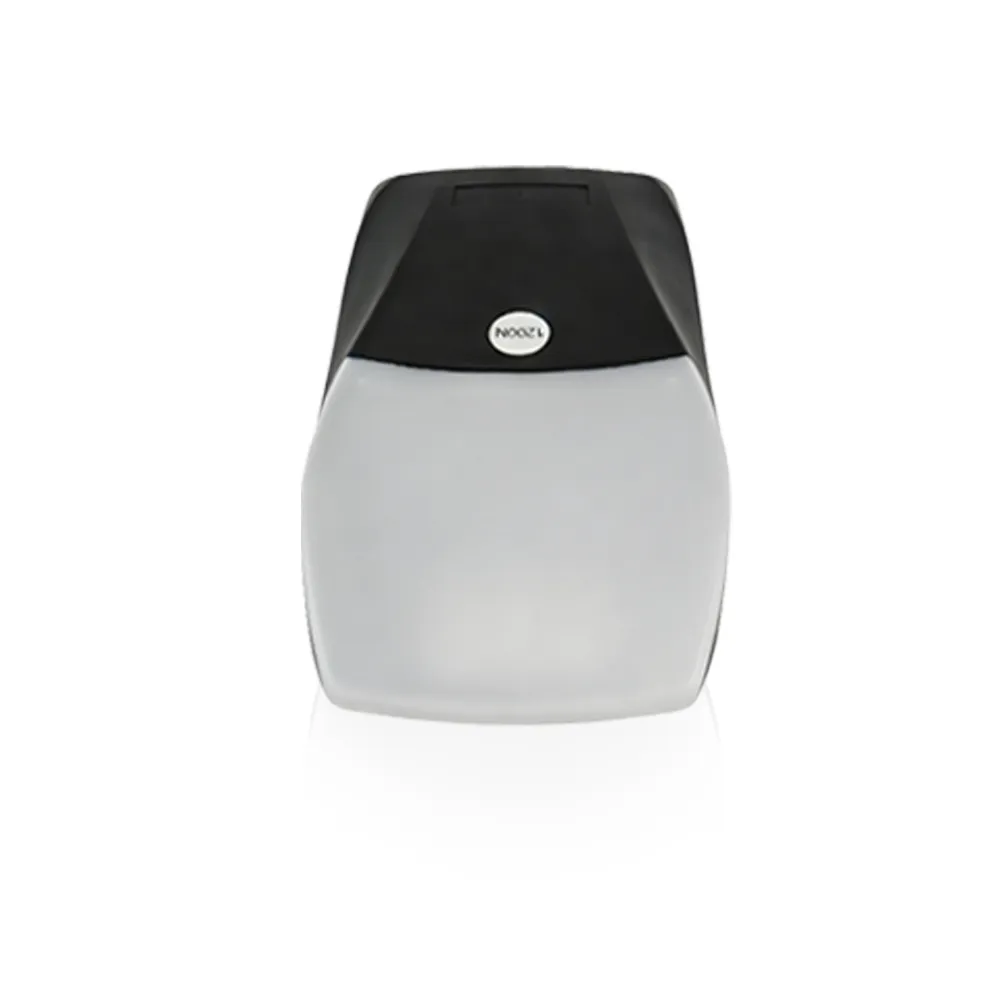

Pro-HL Garage Door Opener

Pro-HL Garage Door Opener

Powerful and versatile. Available in 600N to 1500N pull force for doors up to 18㎡. Smooth 250mm/s operation with dual-voltage support (110-240VAC). Optional WiFi module for smart control—a reliable, cost-effective choice for modern homes.

05
DIRECT DRIVE RANGE

PRO-HL Series Parameters

Model Proline 1/2HP Proline 3/4HP Proline 1-1/4HP
Input voltage 110-120VAC 60Hz 110-120VAC 60Hz 110-120VAC 60Hz
Power input 200W 235W 260W
Max. pulling force 600N 800N 1200N
Opening speed 160mm/s 160mm/s 160mm/s
Lamp LED LED 5
Radio frequency 433.92MHz 433.92MHz 14-18
Working temperature -20~40C -20~40C -20~40C
Door area 10m² 12m² 14m²
UL certificate UL325 UL325 UL325
06 MODEL & SPECIFICATIONS

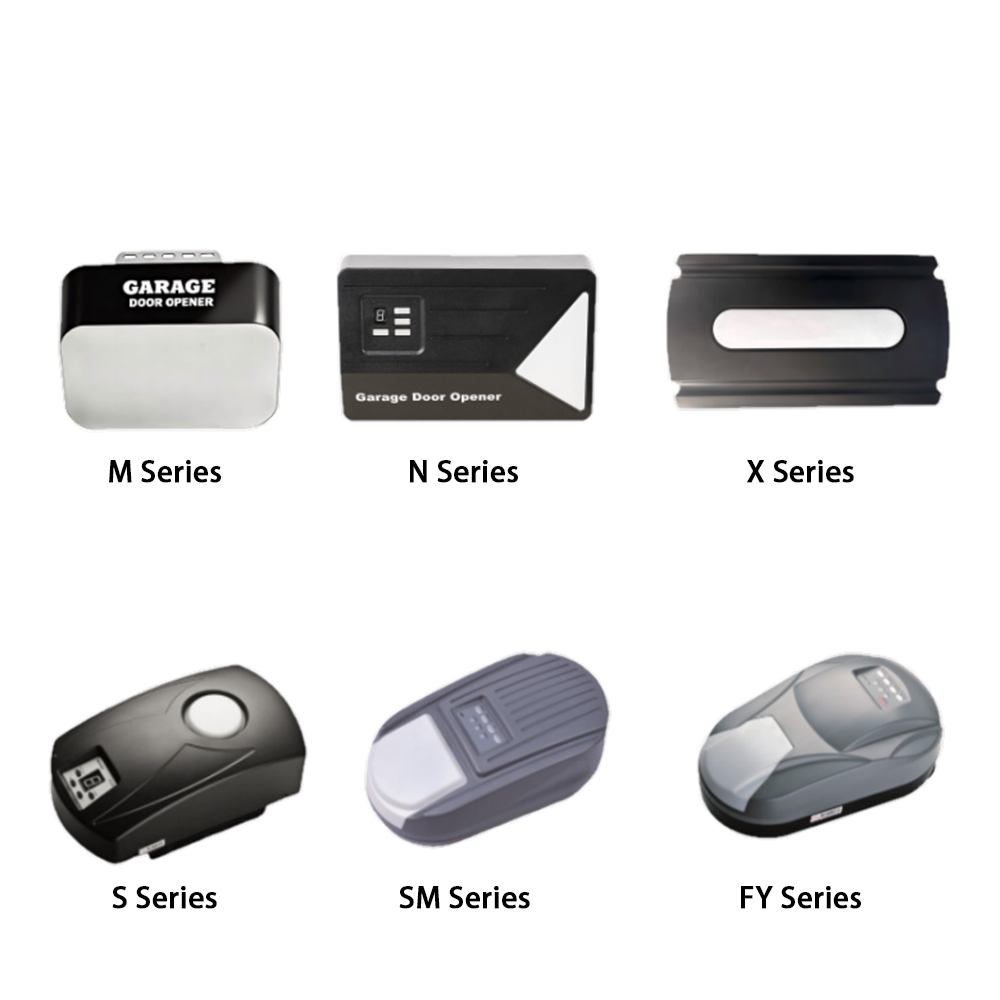

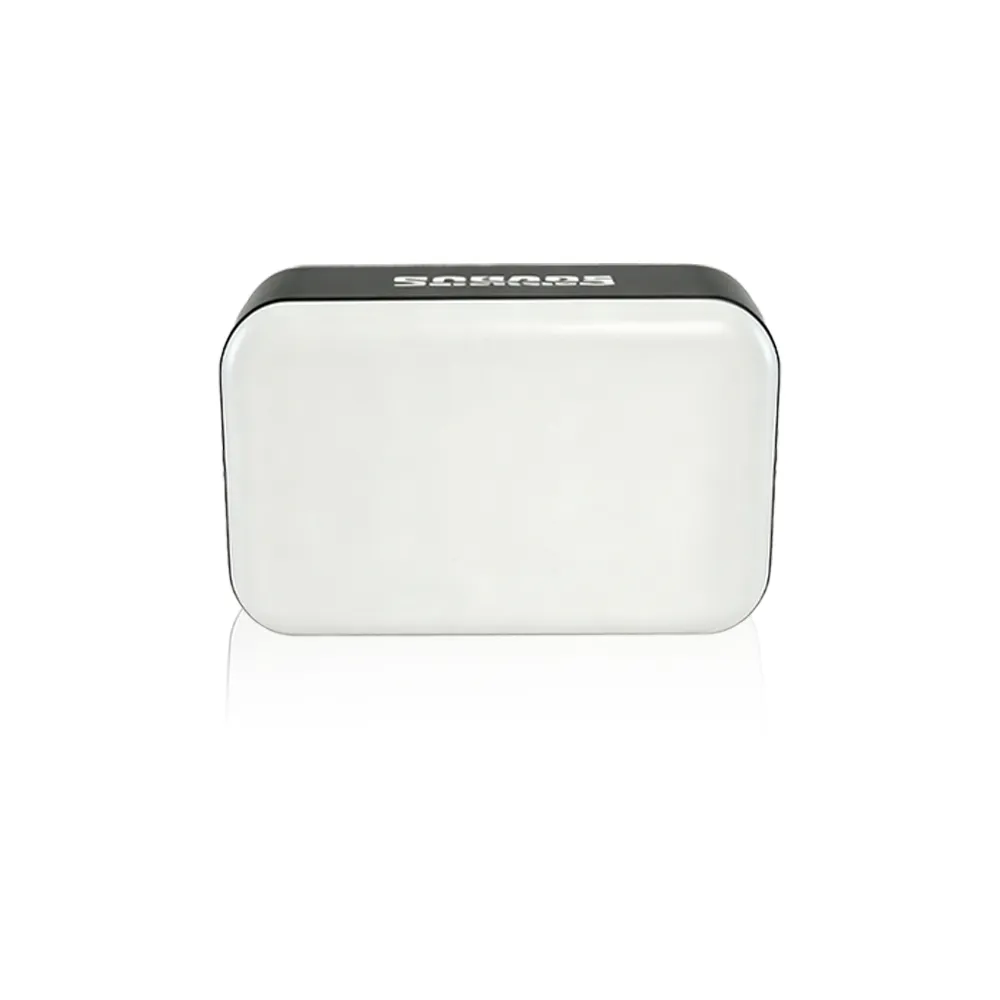

M Series Garage Door Opener

M Series Garage Door Opener

M provides 600N to 1500N lifting force for 8-18㎡ doors, dual-voltage input, 1700lm LED lighting, and 3300/3600 chain rails in one installation package.

06
M SERIES

M series parameters

Model number M600 M800 M1000 M1500
Rated current 0.5A 0.7A 0.9A 1.1A
Motor power 110W 154W 198W 240W
Tension and thrust 600N 800N 1000N 1500N
Maximum door size 8m²-10m² 10m²-12m² 12m²-14m² 14m²-18m²
Motor voltage 24V/DC
Nominal voltage AC230V/AC120V
Rated frequency 50Hz/60Hz
Ambient temperature -20°C ~ +50°C
Rated operating time 4Min
Rated operating speed 150-180mm/S
Radio frequency 433.92Mhz
Remote control code Rolling code
Remote control range (open area) 50m
Size of the garage door opener 343mm*210mm*130mm
Package size 450mm*226mm*205mm

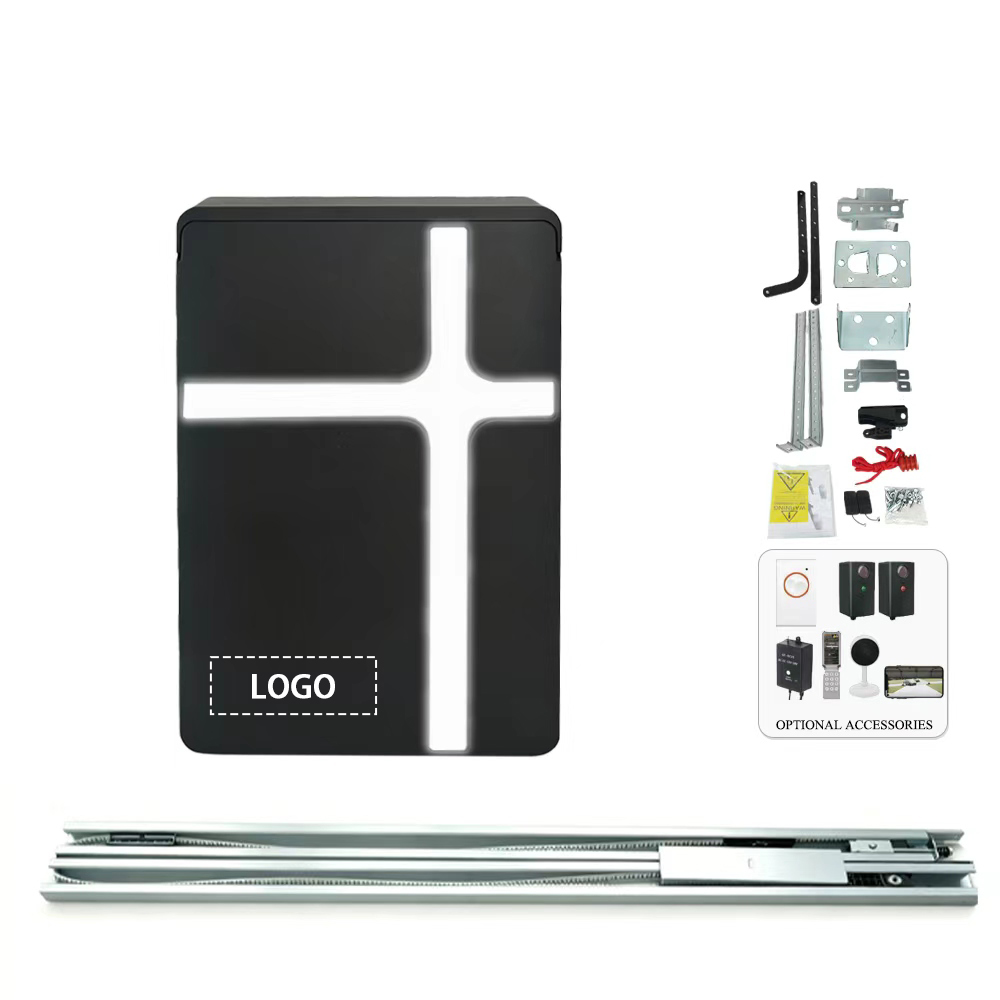

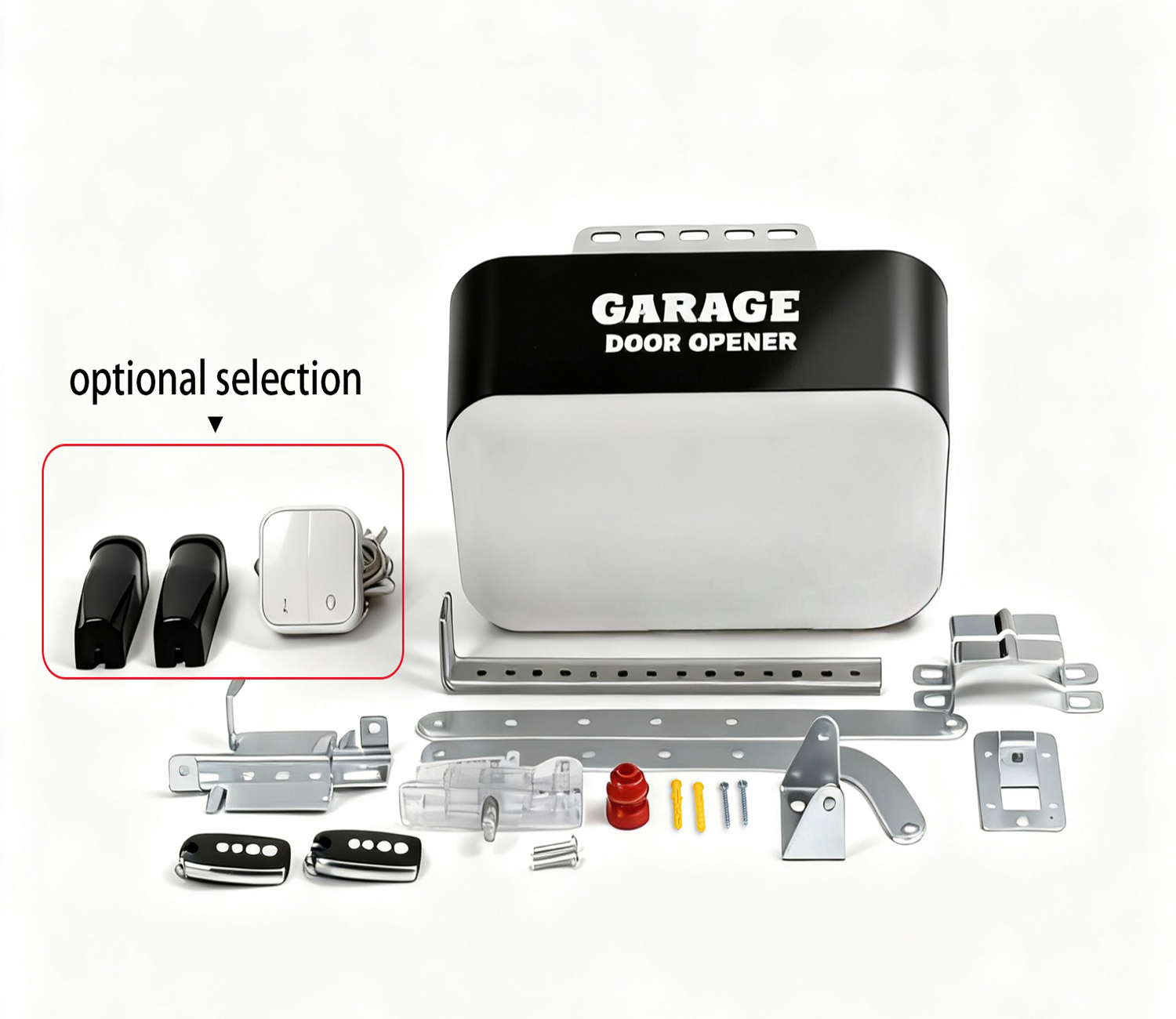

Fittings
Remote control T22, 2 units

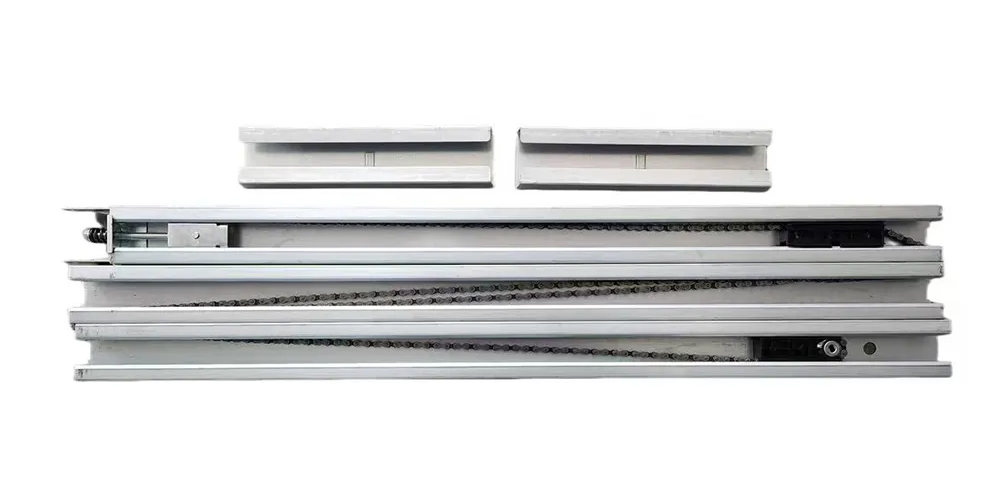

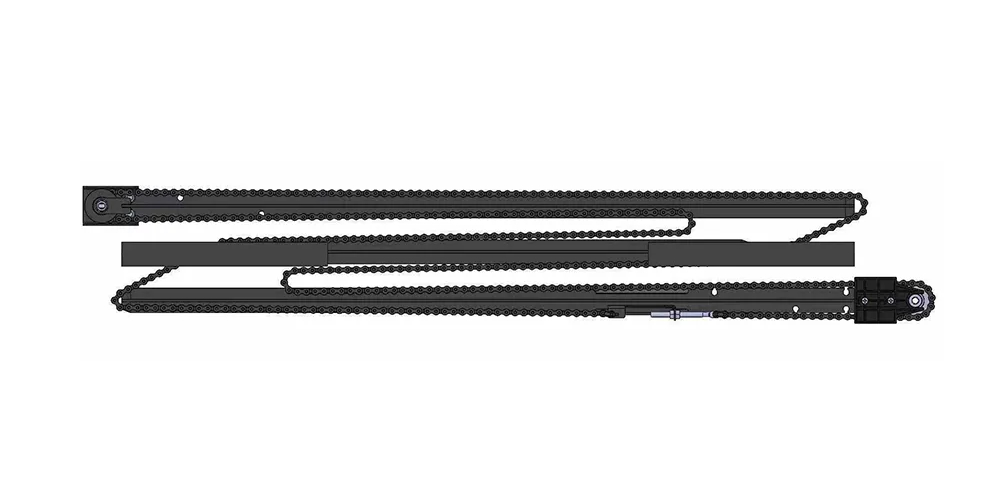

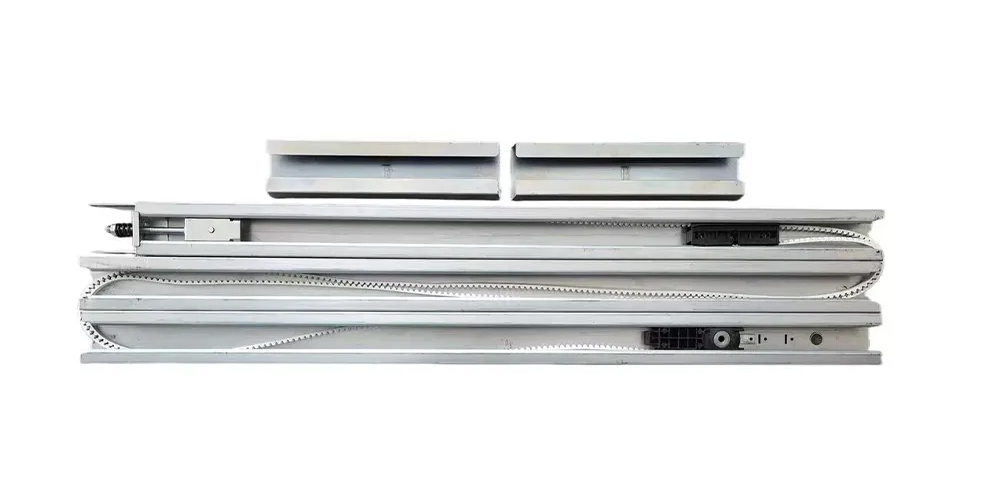

Orbital forcing Chain / Belt
Classification of track Single-root track / Bipartite section track / Tripartite section track
Track length 3000, 3300, 3600, 3900, 4200, 4500mm
WiFi Apolegemic
Customization Sustaining
07 MODEL & SPECIFICATIONS

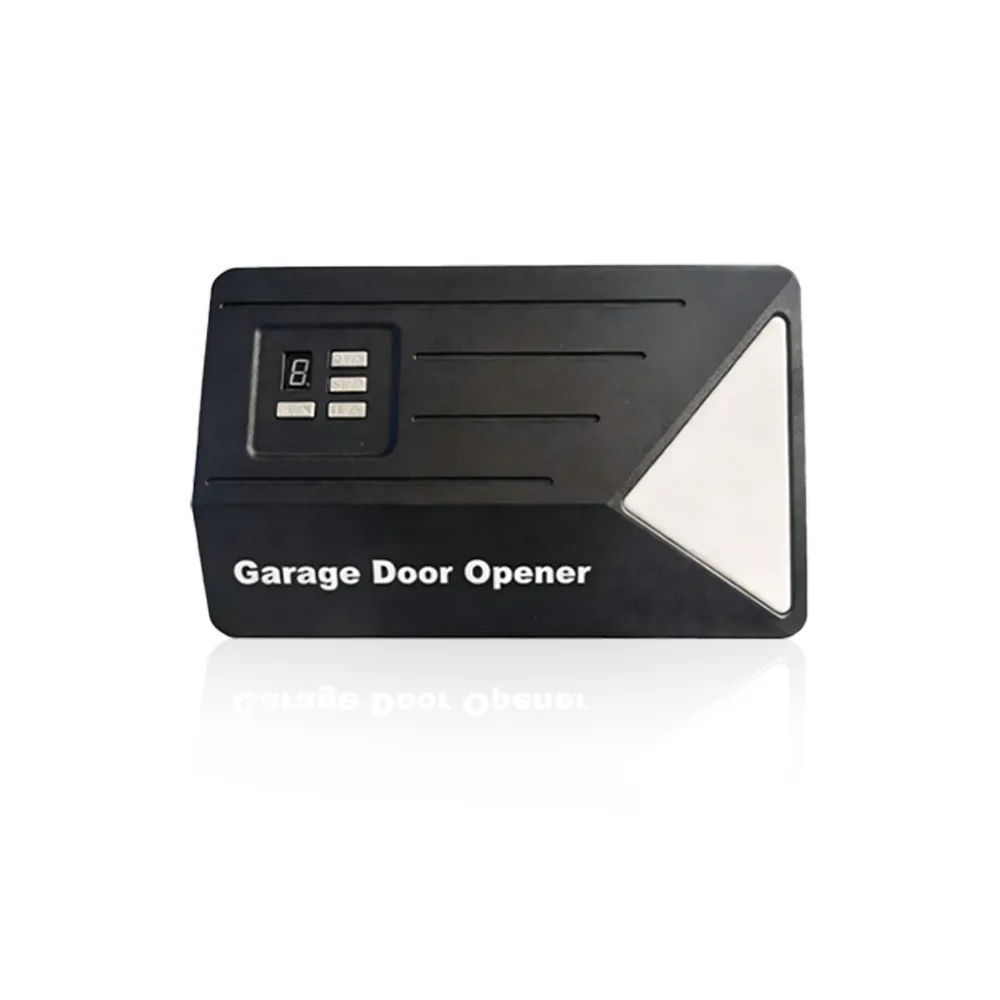

N Series Garage Door Opener

N Series Garage Door Opener

N and X support 600N to 1500N lifting force for 8-18㎡ doors, with 3300/3600 chain rails and 120V/230V input for straightforward installation.

07
N SERIES

N series parameters

Model number N600 N800 N1000 N1500
Rated current 0.5A 0.7A 0.9A 1.1A
Motor power 110W 154W 198W 240W
Tension and thrust 600N 800N 1000N 1500N
Maximum door size 8m²-10m² 10m²-12m² 12m²-14m² 14m²-18m²
Motor voltage 24V/DC
Nominal voltage AC230V/AC120V
Rated frequency 50Hz/60Hz
Ambient temperature -20°C ~ +50°C
Rated operating time 4Min
Rated operating speed 150-180mm/S
Radio frequency 433.92Mhz
Remote control code Rolling code
Remote control range (open area) 50m
Size of the garage door opener 335mm*210mm*120mm
Package size 450mm*226mm*205mm
Fittings
Remote control T22, 2 units
Orbital forcing Chain / Belt
Classification of track Single-root track / Bipartite section track / Tripartite section track
Track length 3000, 3300, 3600, 3900, 4200, 4500mm
WiFi Apolegemic
Customization Sustaining
08 MODEL & SPECIFICATIONS

X Series Garage Door Opener

X Series Garage Door Opener

Powerful & Ready to Install. Available in 600N to 1500N lifting force for 8-18㎡ doors. Comes with durable 3300/3600 chain rails for a hassle-free, all-in-one installation. Dual voltage (120V/230V) ensures global compatibility, offering reliable, cost-effective performance.

08
X SERIES

X series parameters

Model number X600 X800 X1000 X1500
Rated current 0.5A 0.7A 0.9A 1.1A
Motor power 110W 154W 198W 240W
Tension and thrust 600N 800N 1000N 1500N
Maximum door size 8m²-10m² 10m²-12m² 12m²-14m² 14m²-18m²
Motor voltage 24V/DC
Nominal voltage AC230V/AC120V
Rated frequency 50Hz/60Hz
Ambient temperature -20°C ~ +50°C
Rated operating time 4Min
Rated operating speed 150-180mm/S
Radio frequency 433.92Mhz
Remote control code Rolling code
Remote control range (open area) 50m
Size of the garage door opener 343mm*210mm*130mm
Package size 450mm*226mm*205mm
Fittings
Remote control T22, 2 units
Orbital forcing Chain / Belt
Classification of track Single-root track / Bipartite section track / Tripartite section track
Track length 3000, 3300, 3600, 3900, 4200, 4500mm
WiFi Apolegemic
Customization Sustaining
09 MODEL & SPECIFICATIONS

S Series Garage Door Opener

S Series Garage Door Opener

S Series delivers 600N-1500N thrust for doors up to 18㎡ through a quiet 24V DC motor. AC110/230V input and optional WiFi support flexible installation.

09
S SERIES

S Series Parameters

Model number S600 S800 S1000 S1500
Rated current 0.5A 0.7A 0.9A 1.1A
Motor power 110W 154W 198W 240W
Tension and thrust 600N 800N 1000N 1500N
Maximum door size 8m²-10m² 10m²-12m² 12m²-14m² 14m²-18m²
Motor voltage 24V/DC
Nominal voltage AC230V/AC120V
Rated frequency 50Hz/60Hz
Ambient temperature -20°C ~ +50°C
Rated operating time 4Min
Rated operating speed 150-180mm/S
Radio frequency 433.92Mhz
Remote control code Rolling code
Remote control range (open area) 50m
Size of the garage door opener 375mm*205mm*120mm
Package size 515mm*265mm*190mm
Fittings
Remote control T18, 2 units
Orbital forcing Chain / Belt
Classification of track Single-root track / Bipartite section track / Tripartite section track
Track length 3000, 3300, 3600, 3900, 4200, 4500mm
WiFi Apolegemic
Customization Sustaining
10 MODEL & SPECIFICATIONS

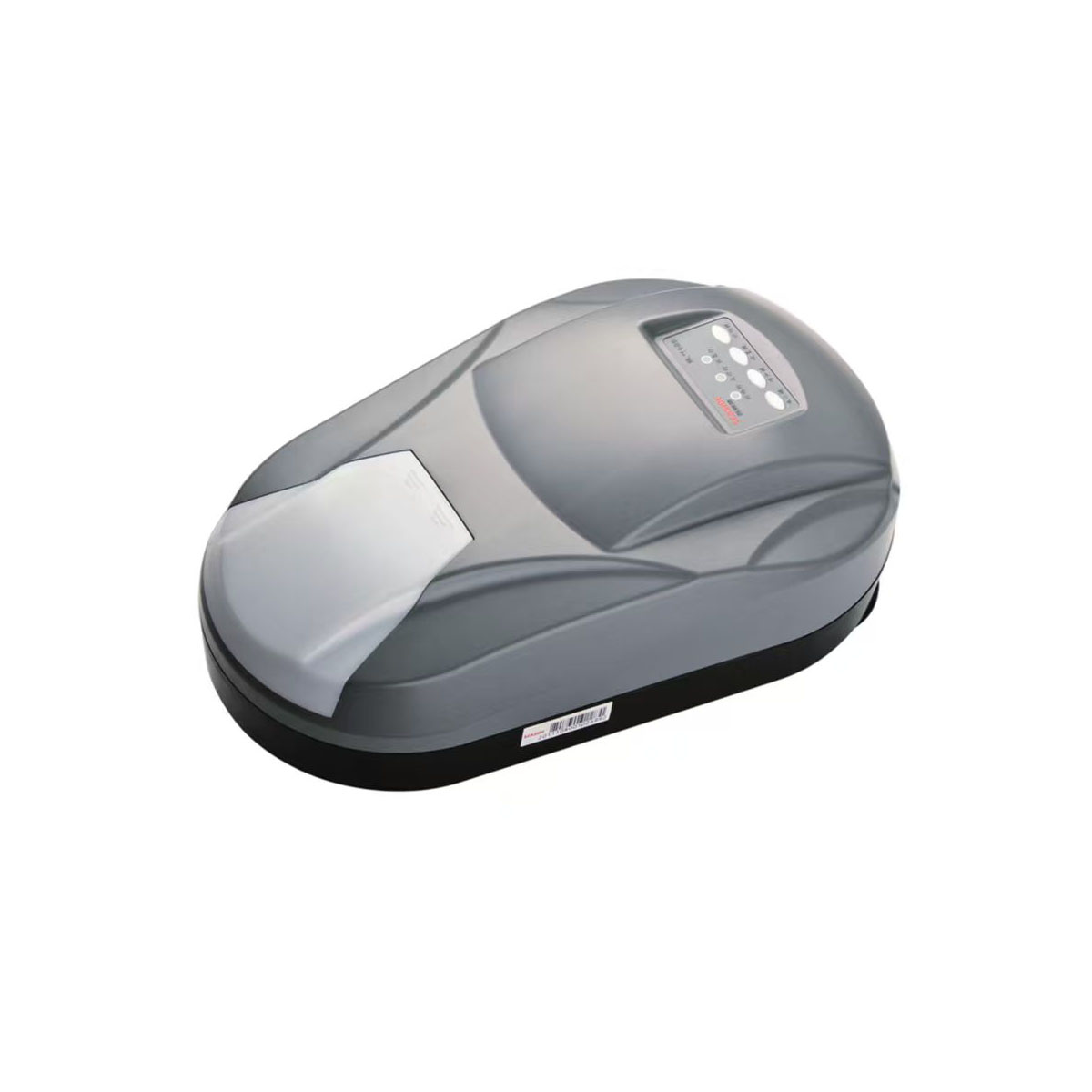

FY Series Garage Door Opener

FY Series Garage Door Opener

FY Series delivers 400N-800N thrust for doors up to 12㎡ through a quiet 24V DC motor. AC110/230V input and optional WiFi suit residential garages.

10
600-1500 RANGE

ECO Series-K/FR/FY/SG/SM Parameters

Model number 600 800 1000 1200 1500
Rated current 0.5A 0.7A 0.9A 1.0A 1.1A
Motor power 110W 154W 198W 220W 240W
Tension and thrust 600N 800N 1000N 1200N 1500N
Maximum door size 8m²-10m² 10m²-12m² 12m²-14m² 14m²-16m² 14m²-18m²
Motor voltage 24V/DC
Nominal voltage AC230V/AC120V
Rated frequency 50Hz/60Hz
Ambient temperature -20°C ~ +50°C
Rated operating time 4Min
Rated operating speed 120-180mm/S
Radio frequency 433.92Mhz
Remote control code Rolling code
Remote control range (open area) 50m
Size of the garage door opener 350mm*204mm*110mm
Package size 456mm*246mm*176mm
Fittings
Remote control T18, 2 units
Orbital forcing Chain / Belt
Classification of track Single-root track / Bipartite section track / Tripartite section track
Track length 3000, 3300, 3600, 3900, 4200, 4500mm
WiFi Apolegemic
Customization Sustaining
11 MODEL & SPECIFICATIONS

SM Series Garage Door Opener

SM Series Garage Door Opener

SM Series uses a compact 24V DC drive with 400N-800N thrust for doors up to 12㎡. AC110/230V input and optional WiFi provide an efficient residential solution.

11
600-1500 RANGE

ECO Series-K/FR/FY/SG/SM Parameters

Model number 600 800 1000 1200 1500
Rated current 0.5A 0.7A 0.9A 1.0A 1.1A
Motor power 110W 154W 198W 220W 240W
Tension and thrust 600N 800N 1000N 1200N 1500N
Maximum door size 8m²-10m² 10m²-12m² 12m²-14m² 14m²-16m² 14m²-18m²
Motor voltage 24V/DC
Nominal voltage AC230V/AC120V
Rated frequency 50Hz/60Hz
Ambient temperature -20°C ~ +50°C
Rated operating time 4Min
Rated operating speed 120-180mm/S
Radio frequency 433.92Mhz
Remote control code Rolling code
Remote control range (open area) 50m
Size of the garage door opener 350mm*204mm*110mm
Package size 456mm*246mm*176mm
Fittings
Remote control T18, 2 units
Orbital forcing Chain / Belt
Classification of track Single-root track / Bipartite section track / Tripartite section track
Track length 3000, 3300, 3600, 3900, 4200, 4500mm
WiFi Apolegemic
Customization Sustaining

Key Features to Consider When Choosing Garage Door Openers

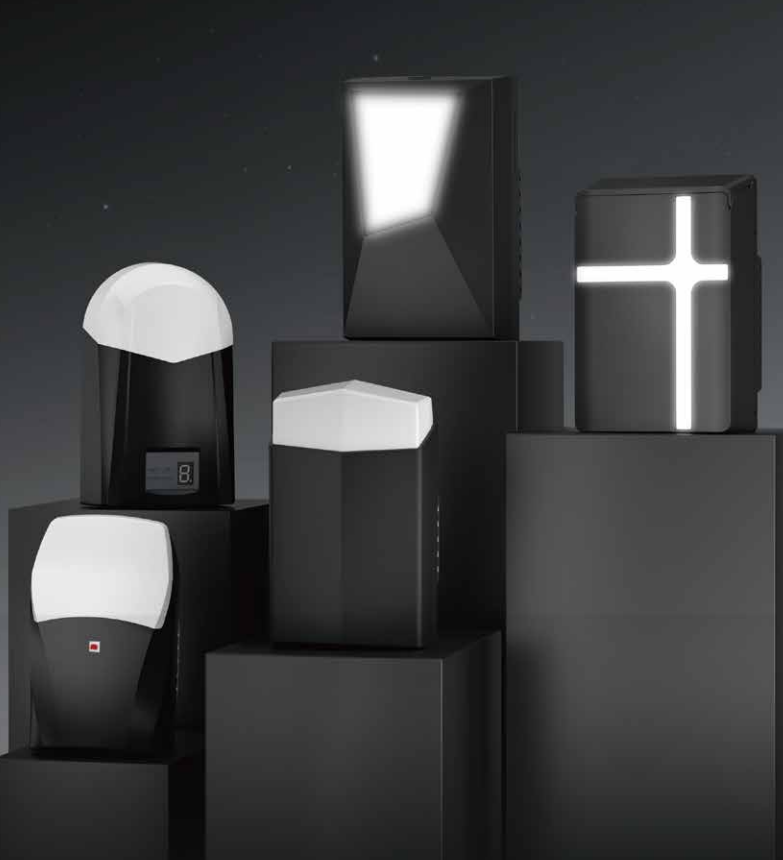

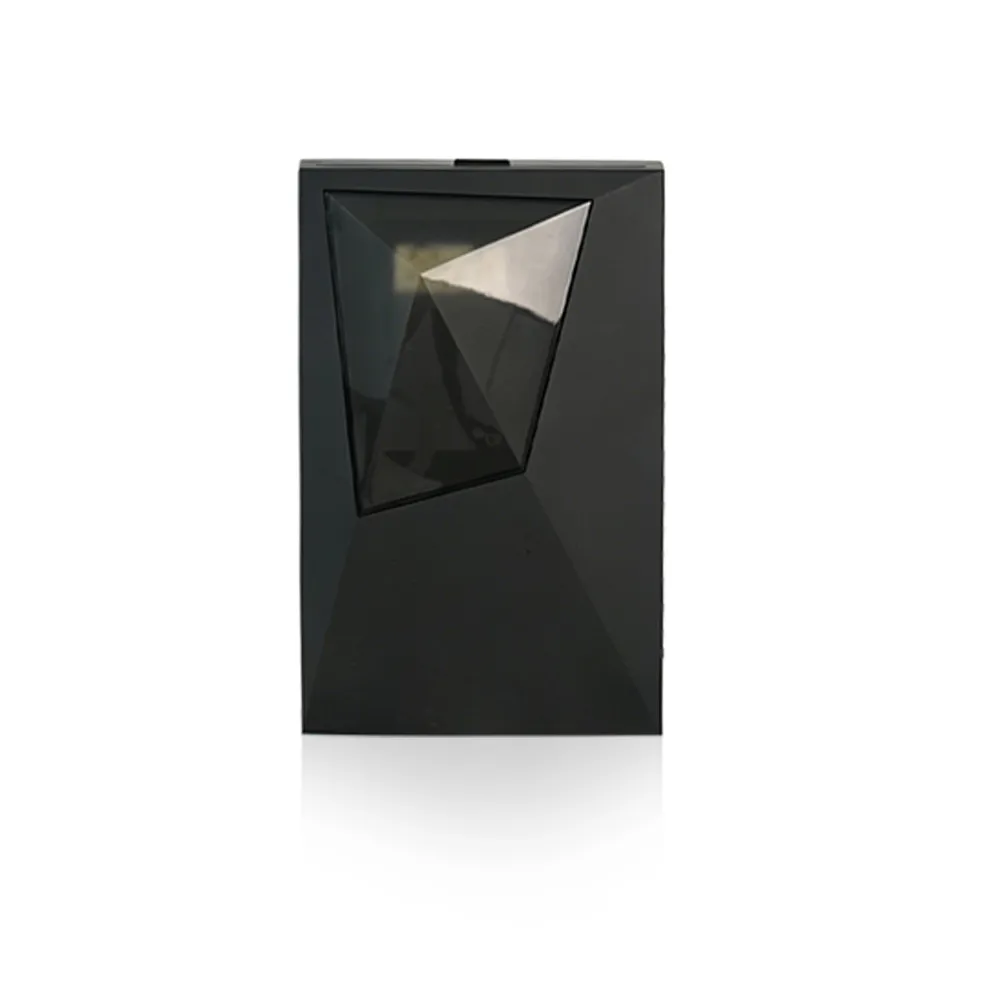

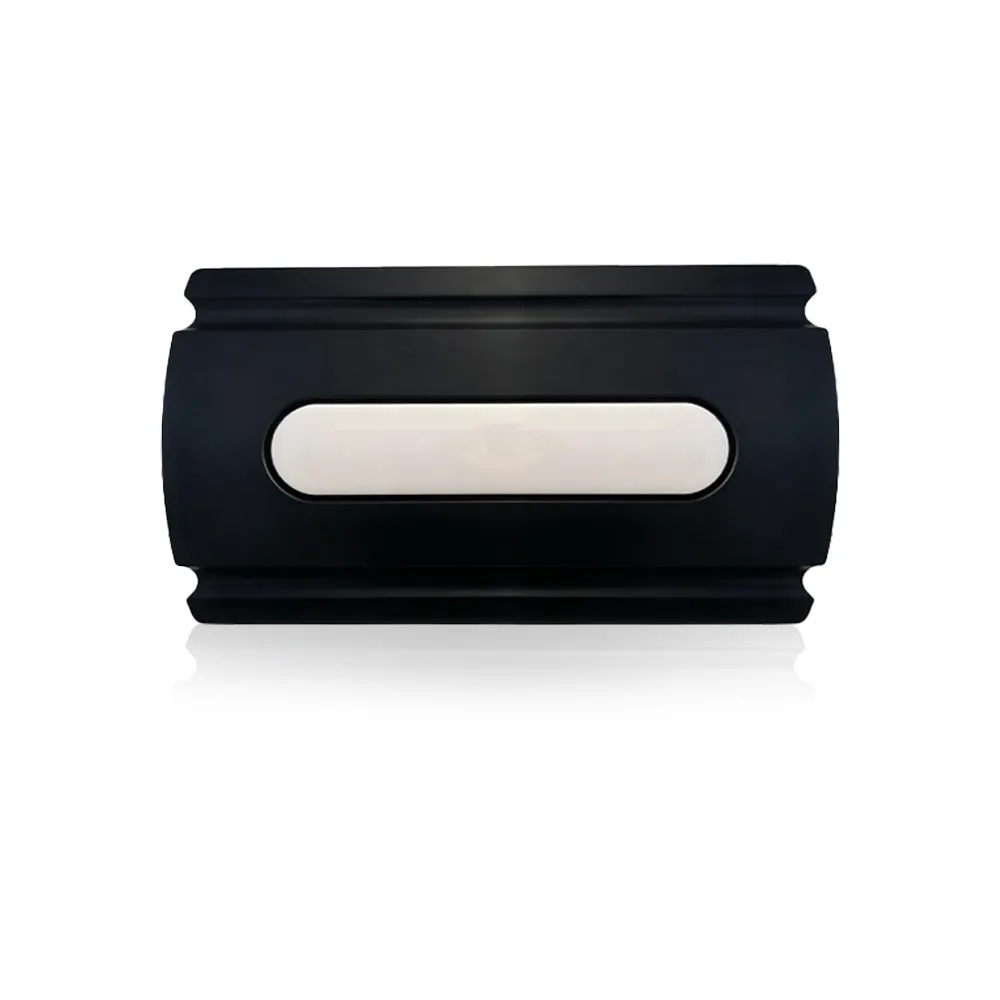

Electronic Smart Remote-Controlled Sectional Garage Door Motor Opener M600

Electronic Smart Sectional Garage Door Motor provides stable, quiet movement for residential and commercial sectional doors. Wireless control, built-in lighting, overload protection, and CE certification support practical daily use.

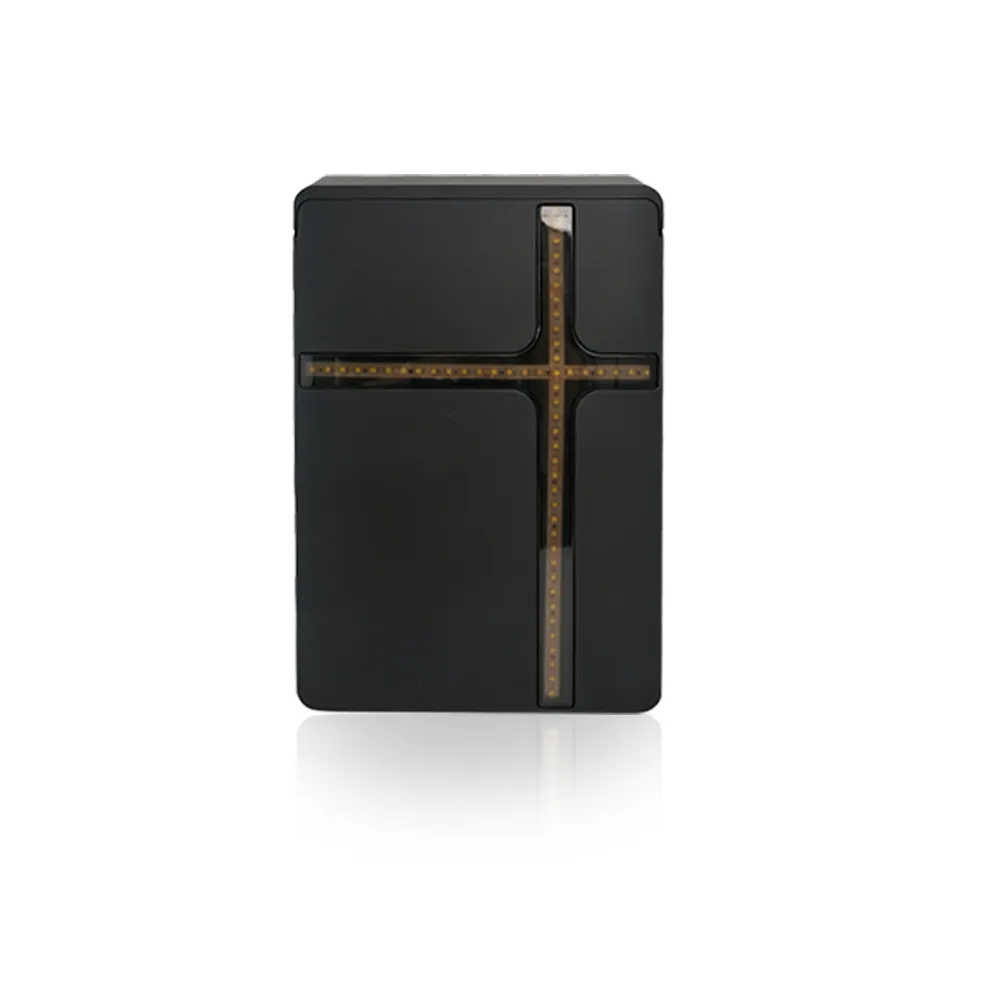

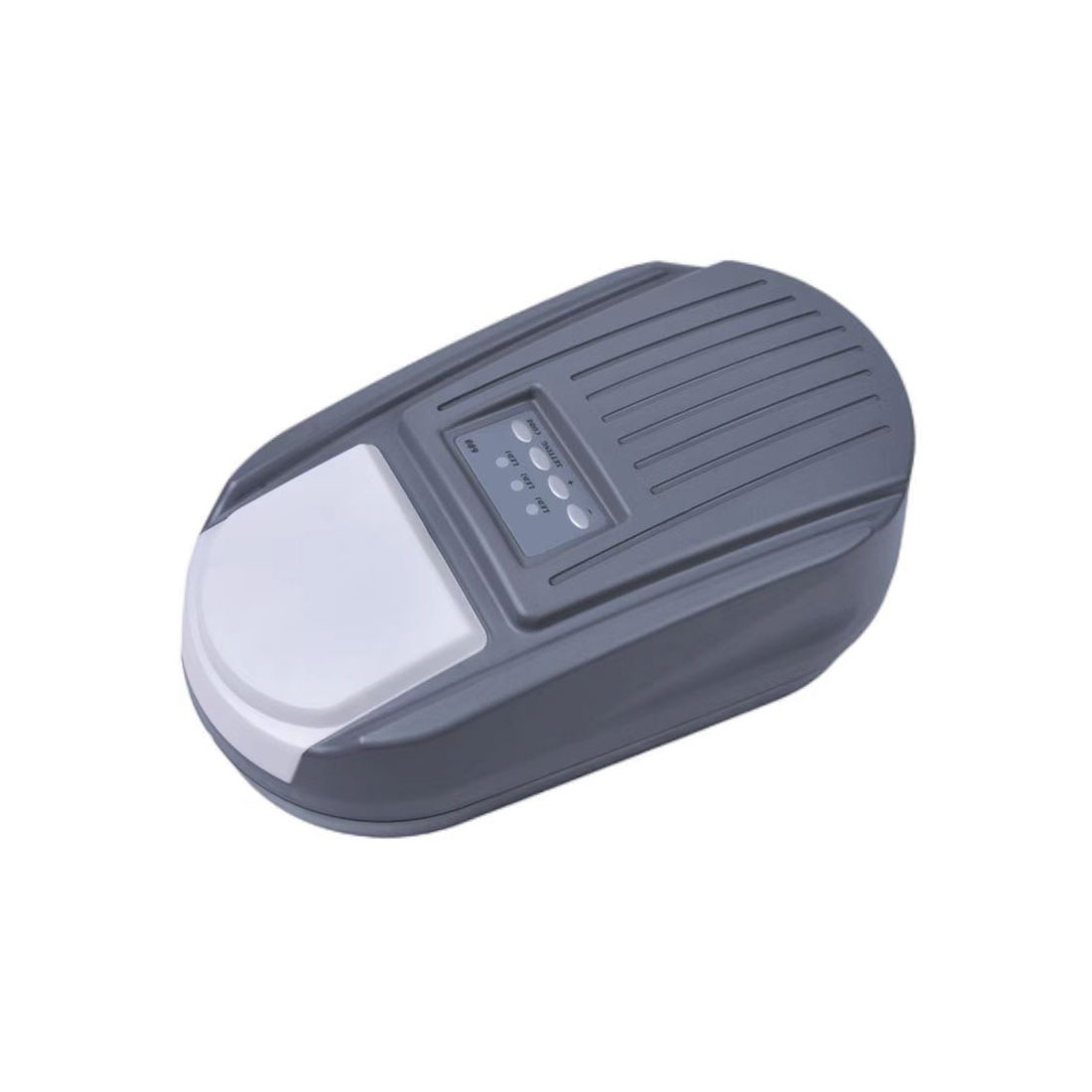

Infrared Photoelectric Garage Door Motor with Remote Control & WiFi Smart Operation

This Infrared Photoelectric Garage Door Opener combines remote control with WiFi access. Its photoelectric device detects obstacles in real time, while mobile operation and low-noise movement support household and commercial sectional doors.

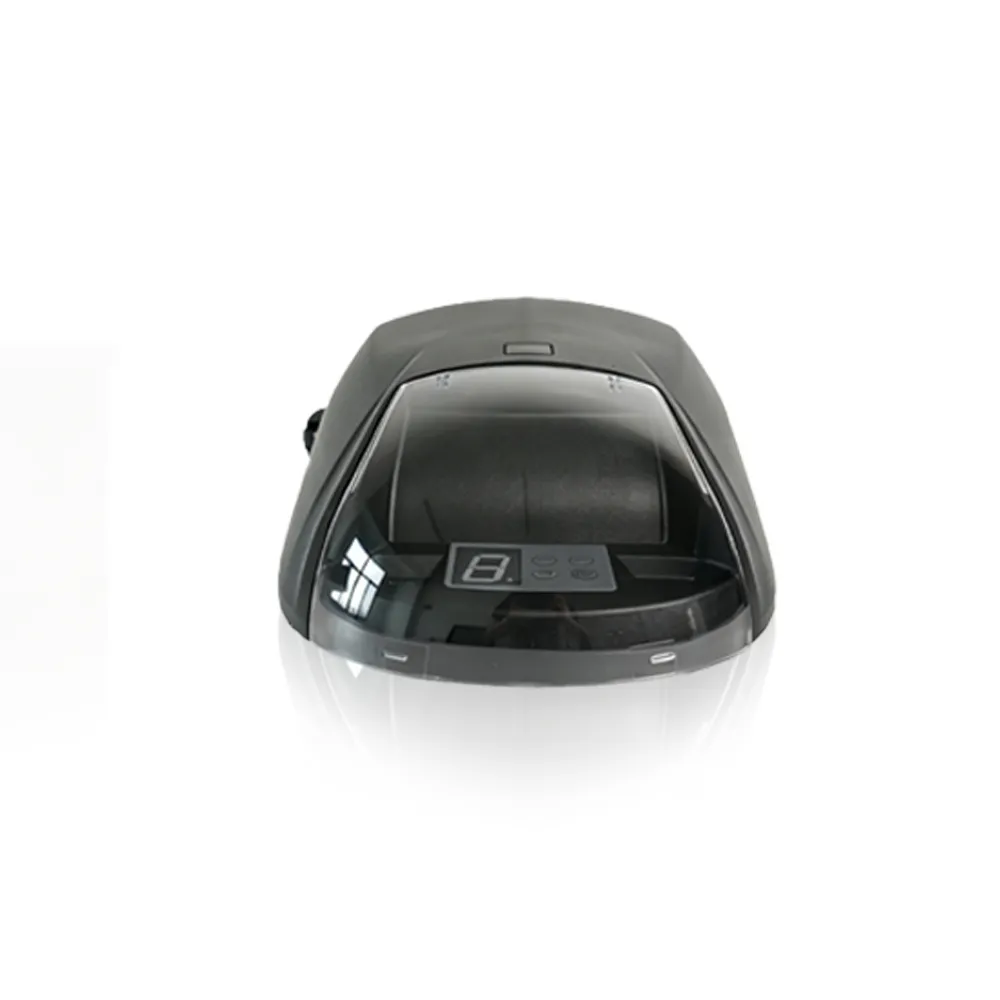

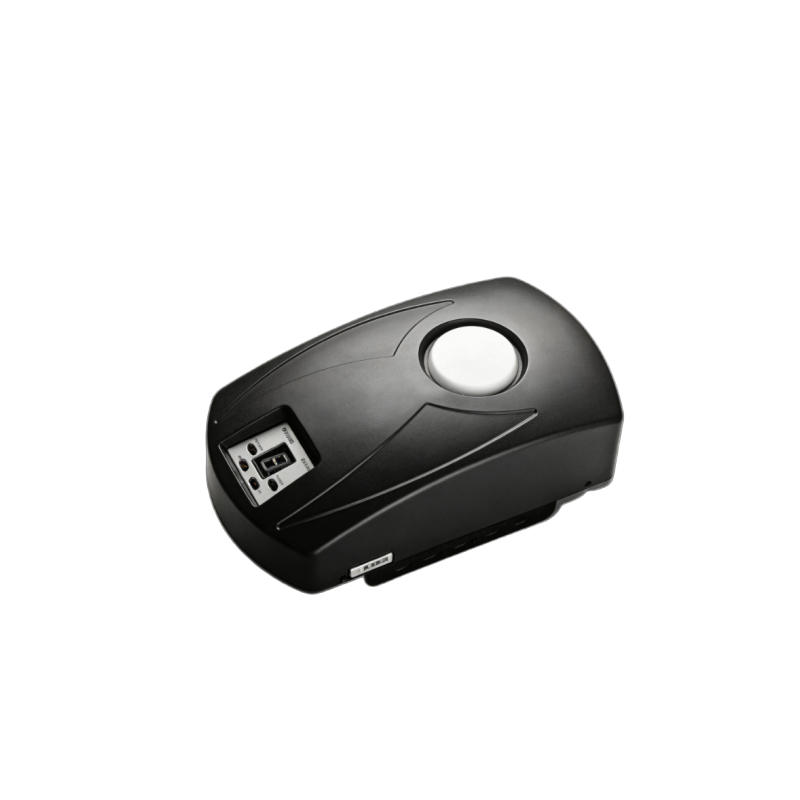

Smart WiFi & Remote Control Garage Door Operators

Smart WiFi and remote-control Garage Door Motor units support sectional and overhead doors. Mobile access, wireless transmitters, stable drive construction, and safety protection provide flexible operation across residential, commercial, and industrial applications.

Infrared Photoelectric Garage Door Motor with Remote Control & WiFi Smart Operation

This Infrared Photoelectric Garage Door Opener uses remote control, WiFi access, and real-time obstacle detection. Mobile operation and quiet movement make it suitable for sectional doors in homes and commercial premises.

Related Accessories

Belt Track
Chain Track
T-Track

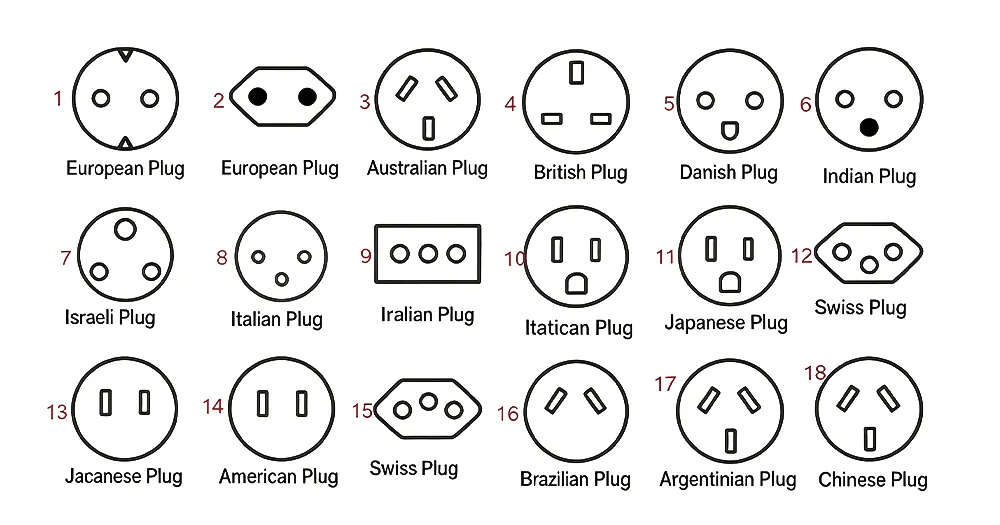

Compatible socket for garage door motor

Main Section Title & Introduction

As a direct manufacturer, we provide consistent production, coordinated logistics, and technical support for project-specific Garage Door Opener solutions.

Factory Direct

Direct factory production supports consistent quality, stable supply, and practical pricing for every Automatic Garage Door Motor order.

Competitive Price

Streamlined manufacturing and supply chain management help keep the Smart Garage Door Opener cost-effective while preserving functional performance.

Fast Delivery

Organized inventory and logistics support prompt order processing and shipment for scheduled projects.

Technical Support

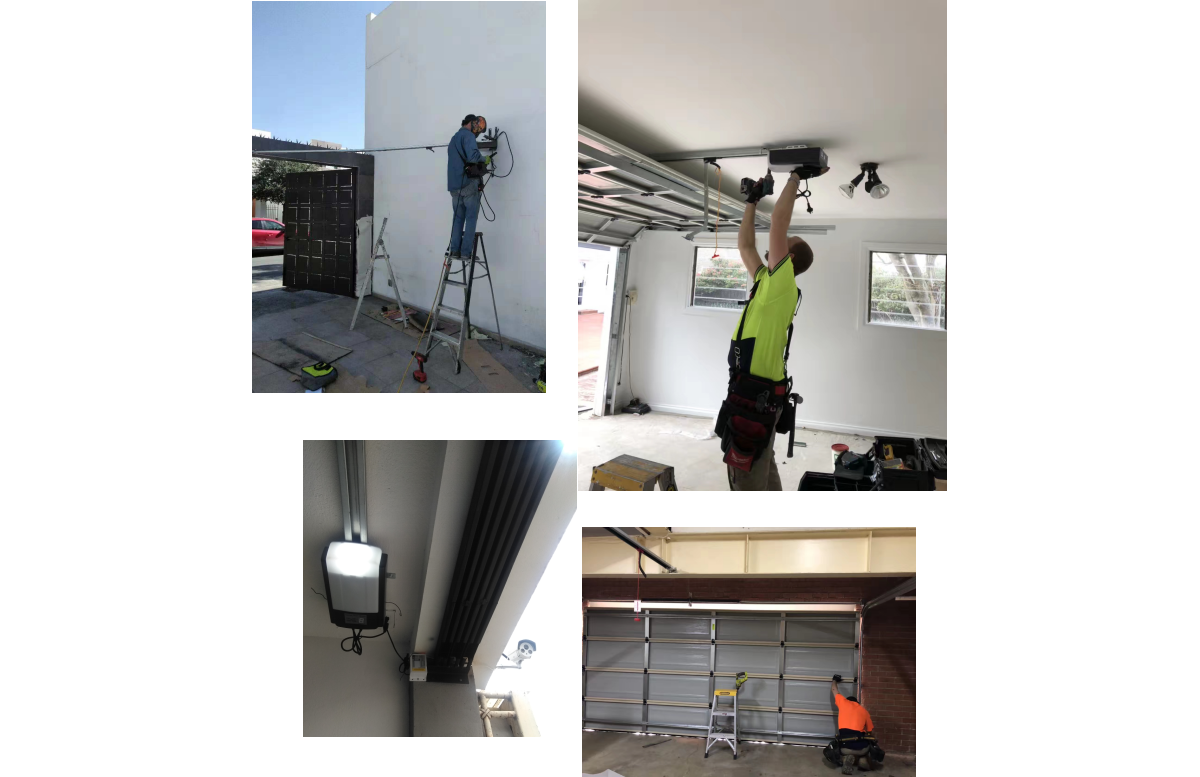

Our technical team provides product guidance, online support, onsite training, and project-specific installation assistance for your Garage Door Opener needs.

Premium Custom Garage Door Opener Solutions

1. Trusted Kaiyisi Brand: Professional door manufacturer with global certifications and proven track record.

2. Superior DC Brushless Motor: 110W brushless technology ensures quiet, efficient, and long-lasting performance.

3. Global Voltage Options: Available in AC230V and AC120V for worldwide compatibility.

4. Complete Support Package: Online technical support, onsite installation, and training included.

Application Scenarios

Ideal for various industrial environments requiring efficient isolation and protection.

Garage Door Opener

Commercial Parking Lots

Durable drive performance supports high-frequency usage of overhead doors in commercial parking and business premises.

Garage Door Opener

Residential Garages

Smart WiFi connectivity and wireless remote control deliver easy remote operation for household sectional and overhead garage doors.

Related Products

Industrial Door Opener
View
Industrial Door Opener →
High Speed Opener
View
High Speed Opener →
Radar and Sensors
View
Radar and Sensors →

15 Years of Dedicated Craftsmanship

Leveraging over a decade of expertise to deliver superior industrial door solutions.

FACTORY DIRECT

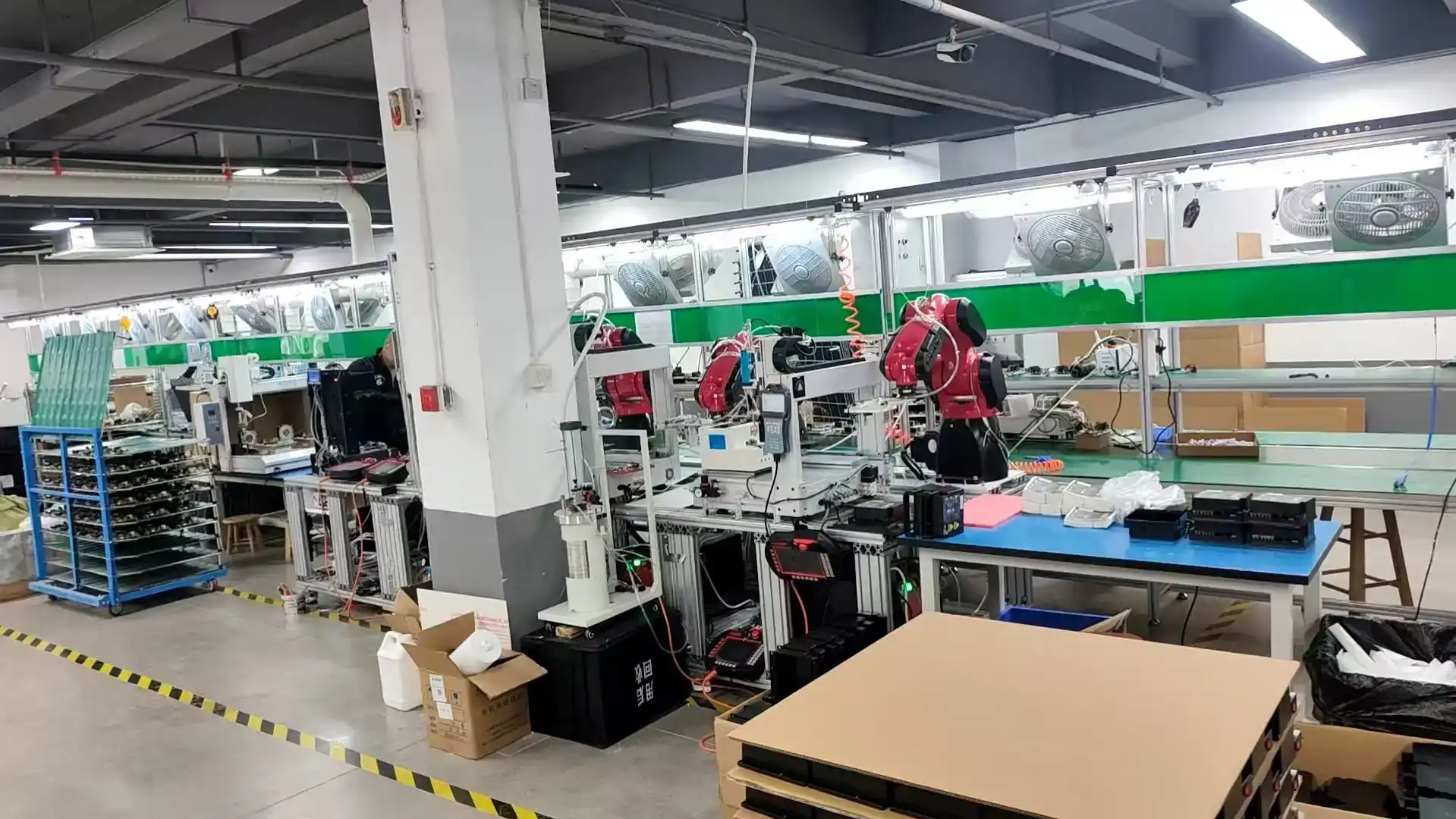

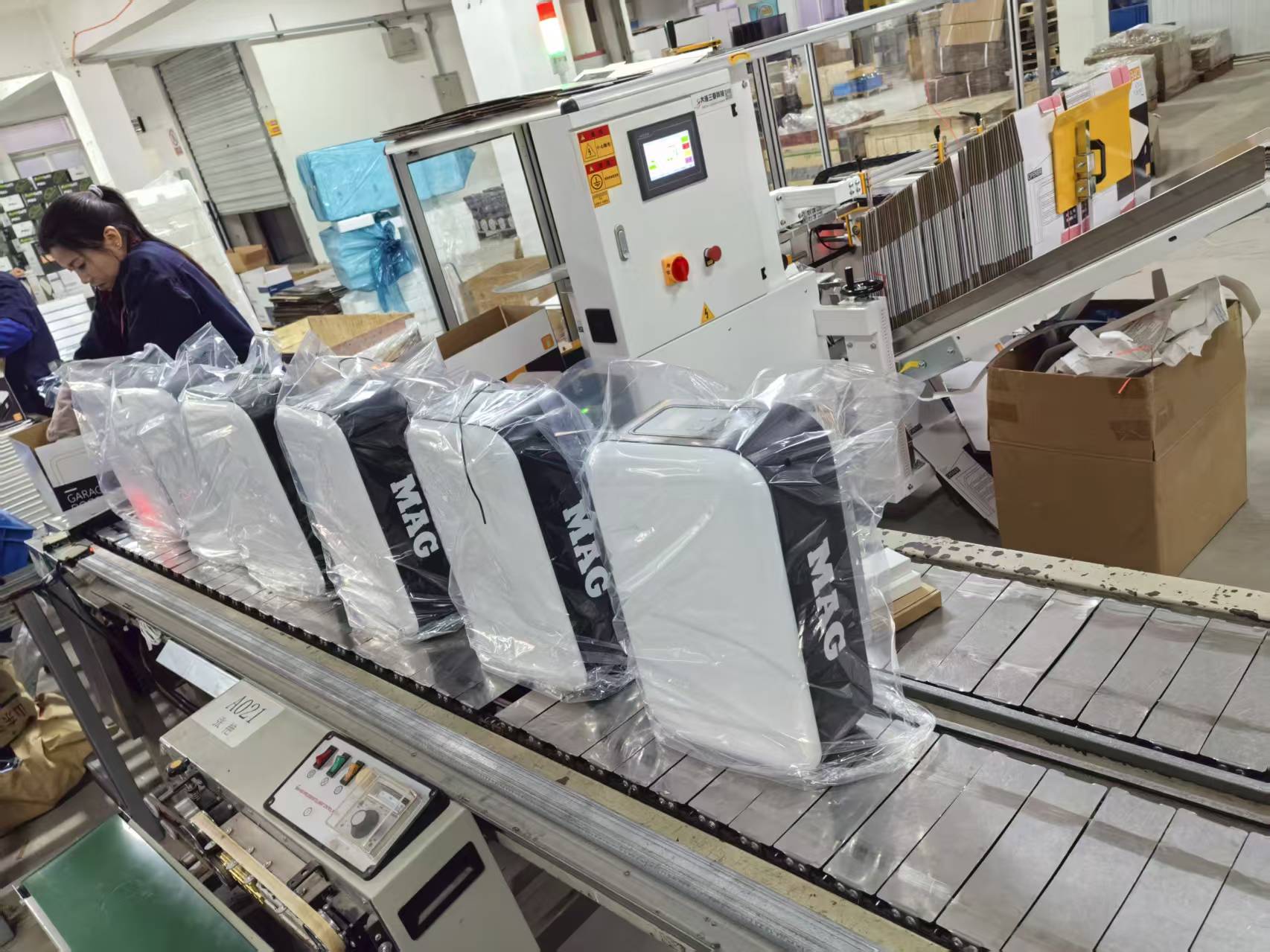

Modern Manufacturing Base

Over 5550 sqm of standardized workshop equipped with advanced automation lines for high-capacity production.

Precision Processing

CNC cutting and automated welding ensure millimeter-level accuracy for every door component.

Strict Quality Control

Multi-stage inspection process including material testing, assembly checks, and final operation tests.

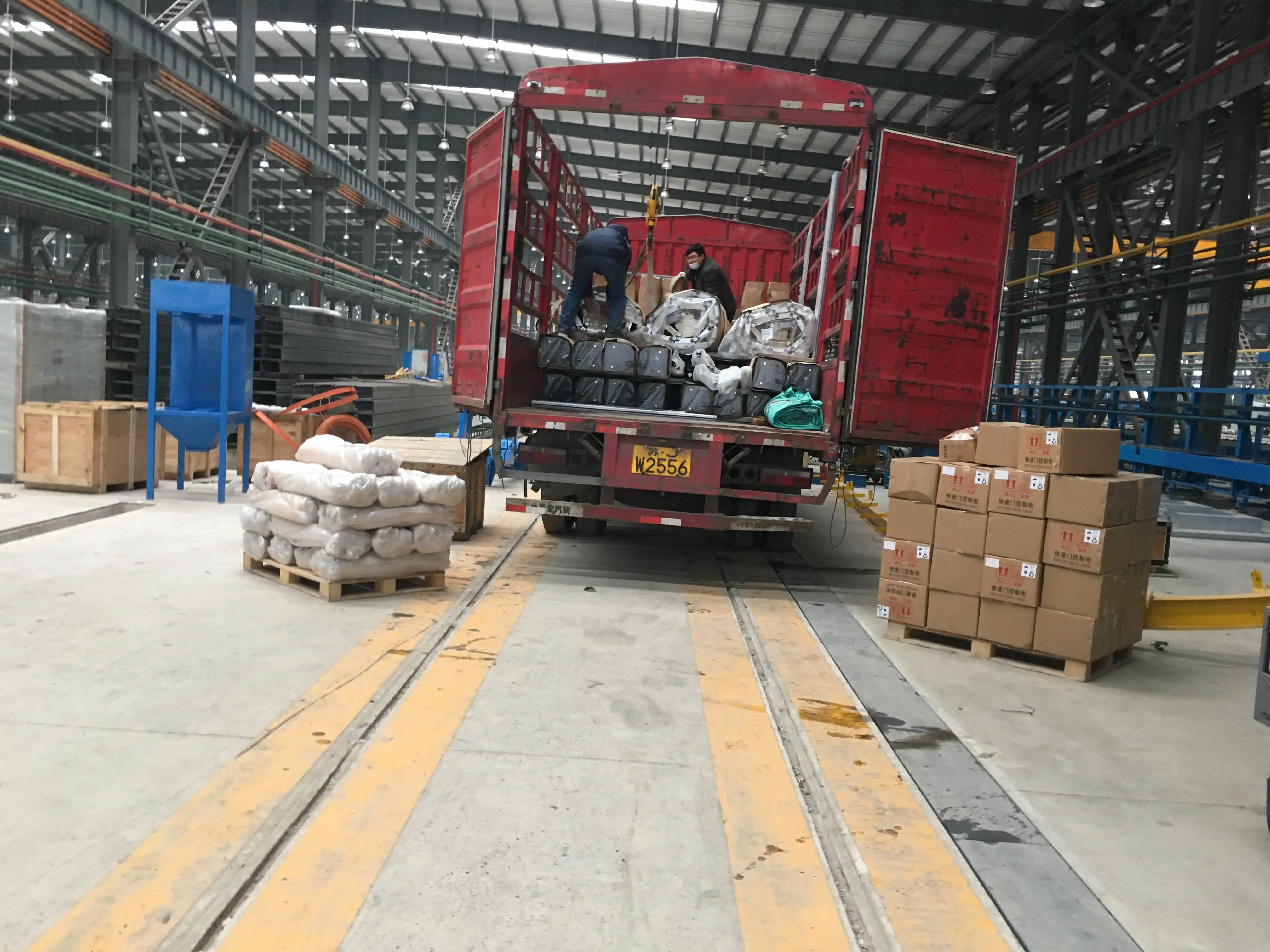

Secure Packaging & Global Shipping

We provide standard reinforced wooden crates and foam protection to ensure products arrive in perfect condition. Additionally, we offer customized packaging solutions tailored to specific dimensions, branding requirements, or special logistics needs, ensuring safe and efficient global delivery.

Explore More Industrial Door Solutions

Different operating environments require specialized structures. Find the perfect match for your facility.

Pvc High Speed Door
→
Insulated Garage Door
→
Accessories Hardware Kit
→
Garage Door Panel
→

KAIYISI Customized Service

We help buyers match the PVC curtain, frame material, motor, and safety configuration to the actual project instead of using a one-size-fits-all solution. Our team supports product selection, technical communication, production, and after-sales service for international projects.

Note: Installation should be performed by qualified technicians. We provide comprehensive technical support to help your team prepare the opening, electrical connections, and control configuration.

QUOTATION CHECKLIST

Information Needed for a Quick Quotation

To ensure the most accurate proposal, please prepare the following technical details.

Door opening width and height
Installation country and industry
Traffic type & daily frequency
Preferred color & frame material
Control method (Radar, Pull cord, etc.)
Safety accessories requirements

Technical Support / FAQ

Q1
What is a PVC high speed door used for?

It is used for factories, warehouses, cleanrooms, food facilities and industrial workshops that need frequent, fast and controlled access.

Q2
How fast does a PVC rapid roll-up door open?

The typical opening speed is 0.8–1.2 m/s. The final speed depends on door size, motor and selected control configuration.

Q3
Can the door size and color be customized?

Yes. The opening size, PVC curtain color, transparent window, frame material, motor and control method can be customized for the project.

Q4
What activation methods are available?

Available options can include push button, radar, pull cord, remote control and geomagnetic sensor, depending on the traffic type and workflow.

Q5
Is the door suitable for cleanroom or food applications?

It can be configured for controlled production areas where reducing dust transfer and unnecessary air exchange is important. Please tell us the cleanliness and operating requirements before quotation.

Q6
What information is needed before quotation?

Please provide the opening size, installation environment, traffic type, required quantity, preferred color and preferred activation method.

Ready to Upgrade Your Facility?

Send us your requirements. KAIYISI will recommend the most suitable PVC high speed door configuration for your project within 24 hours.

GET CUSTOM QUOTE
victor@kysdoor.com WhatsApp
WhatsApp QR Code

Leave a Message

Industrial doors and accessories

Established in 2011, 15 years of production and installation experience. The goal is to serve the world — let the world enjoy KAIYISI's roller doors.

Sales: Victor Li +86 18555510001 victor@kysdoor.com Shop on Alibaba

Products

Application

Blog

Contact Us

© Copyright 2026 KAIYISI All rights reserved
