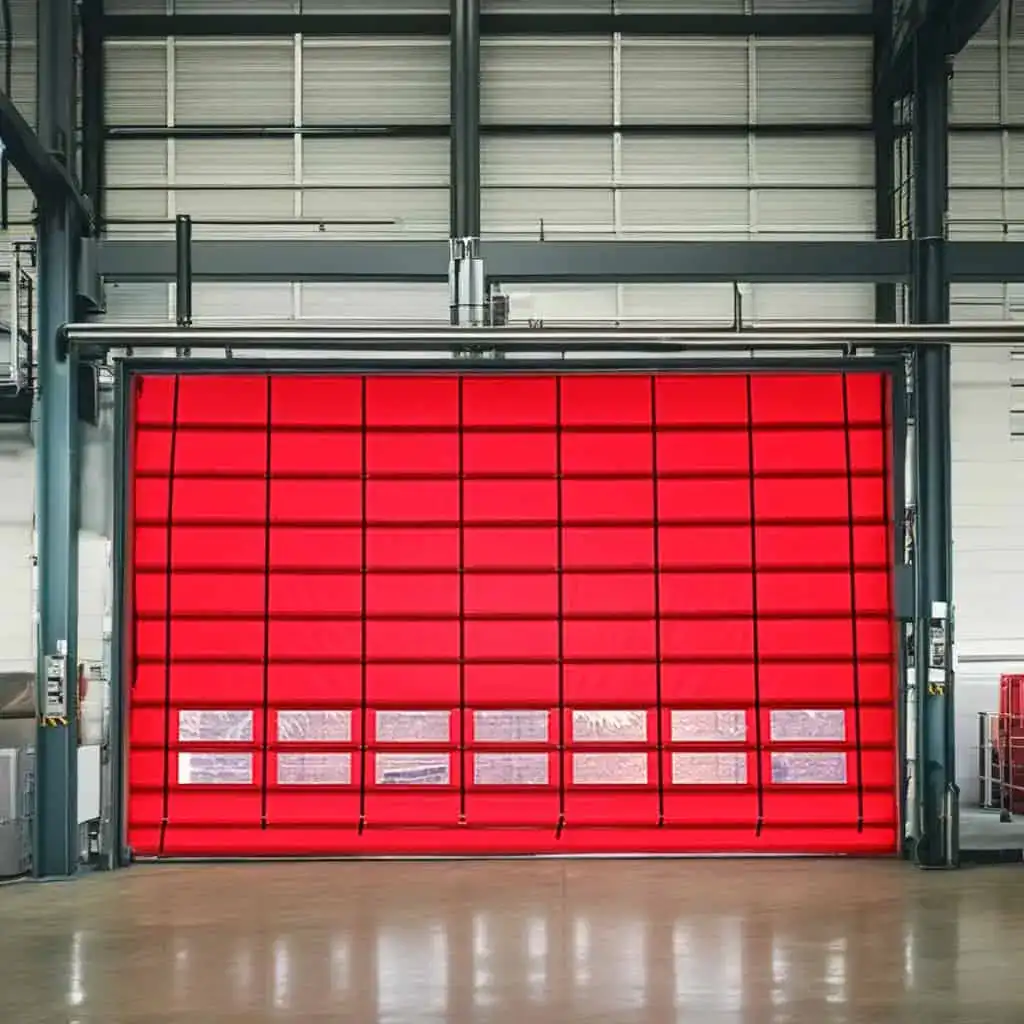

High Speed Stacking Door

Wind Resistant

Reinforced PVC curtain with wind ribs withstands outdoor wind loads up to Class 8 (800N/m2) for reliable exterior operation.

Stack Folding Design

Unique vertical folding stack mechanism saves ceiling space and allows operation in buildings with limited headroom.

Rapid Operation

Opening speed up to 1.6m/s with frequency inverter control ensures fast traffic flow for large vehicles and equipment.

Heavy-Duty Construction

Industrial-grade motor, reinforced tracks, and galvanized steel frame withstand harsh outdoor weather conditions.

Infrared Bottom Safety

Pair of Autonics photoeyes at the door frame base; instantly stops door descent when a person or object remains underneath.

Category: High Speed Door
Tags:
Pvc High Speed Door High Speed Zipper Door Large PVC Flexible Door High Speed Stacking Door High Speed Spiral Door Cold Storage Door

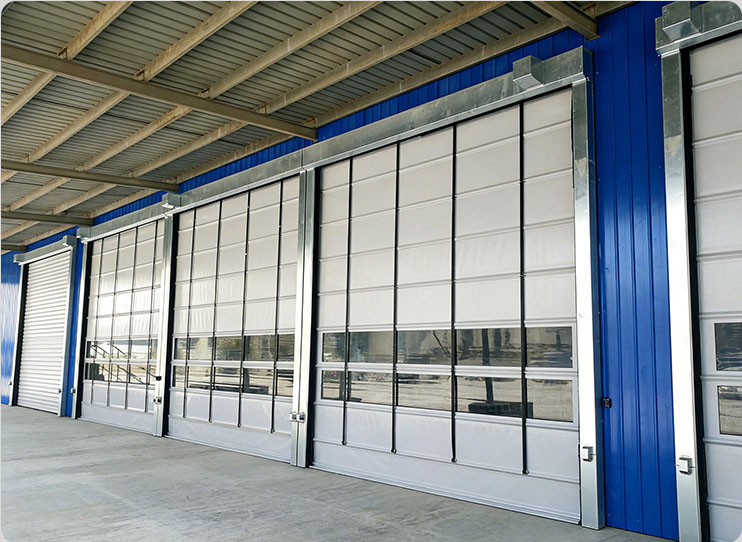

KAIYISI PVC Rapid-Stack Folding Doors are engineered for large exterior openings where wind resistance, rapid operation, and space-saving design are critical. The unique folding stack mechanism allows the door to open vertically while withstanding strong outdoor wind loads.

Each Custom high speed roll-up door can be tailored according to opening size, operating frequency, installation environment, control method, curtain color, and safety requirements.

  • Customizable In Multiple Sizes

    Configure the door to match your opening and installation conditions, allowing straightforward integration without costly structural modifications.

  • Clear Safety Vision

    Built-in transparent PVC window gives drivers full visibility of the opposite side, reducing collisions and improving traffic flow in high-activity warehouses.

  • High Speed Stacking Door

    Supports remote control, wall switches, magnetic loops, radar sensors, pull-rope switches, and signal lamps for flexible access management.

  • Low-Maintenance Durability

    Reinforced tear-resistant PVC fabric and modular components minimize wear and simplify repairs, cutting long-term maintenance costs for busy industrial and logistics facilities.

High Speed Stacking Door

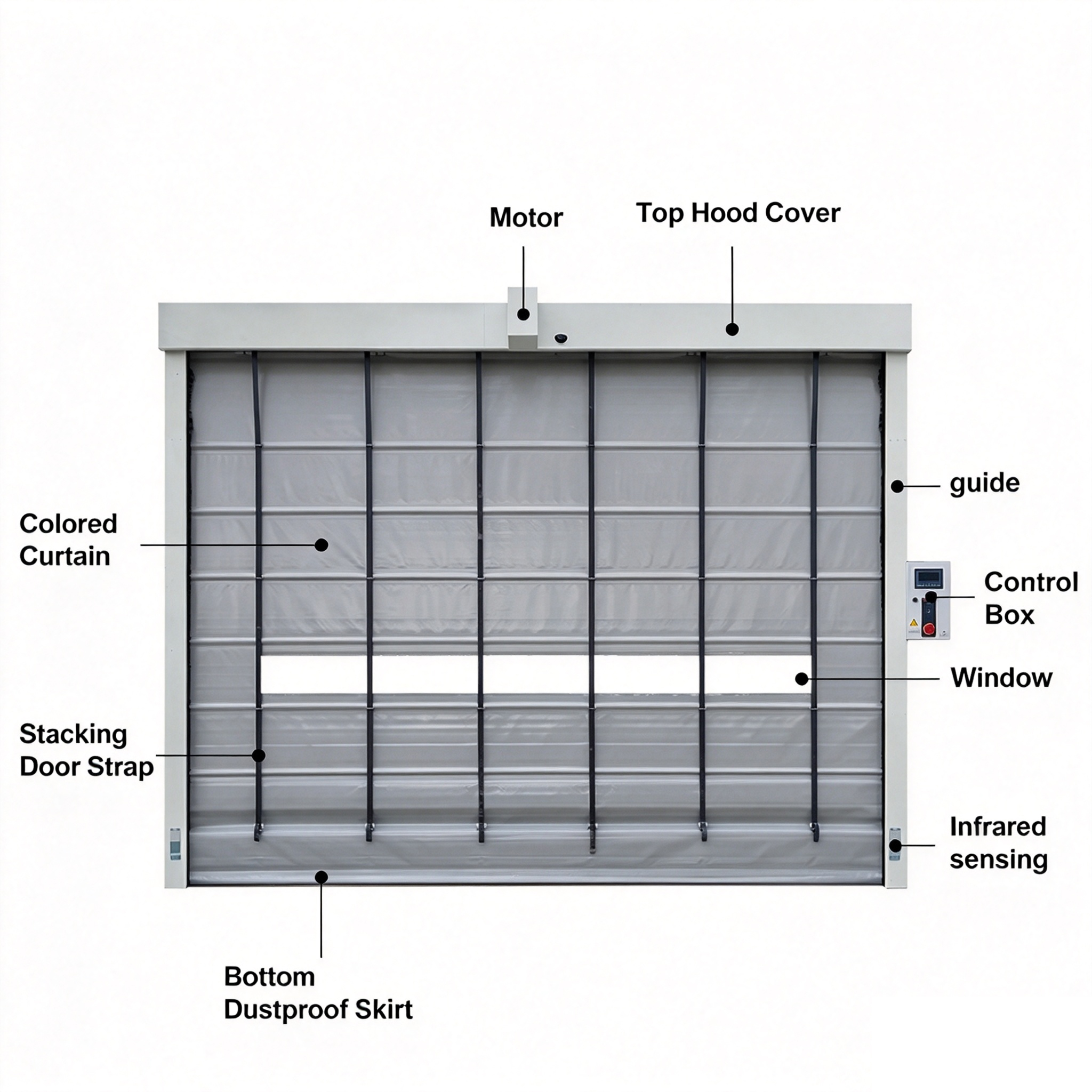

The reinforced PVC curtain, aluminum wind bars, and servo drive support fast, stable operation at 0.6–1.6 m/s. Infrared photocells, a bottom airbag, and tight side and bottom seals provide dependable daily protection, while the folding stack design requires approximately 900 mm of overhead clearance.

Technical Specifications

Professional parameters for KAIYISI High Speed Stacking Door

Curtain Material
High-strength PVC fabric with aluminum wind ribs
Curtain Thickness
1.5mm / 2.0mm PVC
Maximum Size
10000mm x 8000mm
Opening Speed
0.6m/s - 1.6m/s (adjustable)
Closing Speed
0.4m/s - 0.8m/s (adjustable)
Motor Power
1.5kW - 4.0kW (frequency inverter)
Wind Resistance
Class 10 (up to 1000N/m2)
Cycle Life
500,000+ cycles
Control System
PLC with frequency inverter
Safety Features
Airbag bottom edge, photocells, safety edge, emergency stop

Key Features of Our PVC Rapid-Stack Folding Door

Durability and Weather Resistance

Our PVC Rapid-Stack Folding Doors use thick, high-toughness curtain panels and reinforced wind bars to maintain a stable barrier in demanding outdoor conditions. When closed, the panels limit wind, rain, and dust infiltration, helping protect equipment and maintain a more consistent indoor environment.

Enhanced Safety Performance

The flexible anti-collision folding structure releases gently when contacted by a forklift or truck, reducing damage to the curtain and vehicle. Built-in infrared photoelectric sensors trigger rapid reversal to reduce trapping and collision risks.

The folding structure is designed to release and recover smoothly after minor contact, helping keep high-traffic entrances operational.

Wide Adaptability

Manufacturing facilities and logistics warehouses handle forklifts and trucks of different sizes. The flexible folding system is suited to high-traffic passageways and can be configured for different operating frequencies and site conditions.

Its impact-resistant curtain helps the door recover from minor contact, supporting reliable high-cycle operation and smoother logistics flow.

Advanced Performance & Certified Reliability

Engineered for extreme industrial conditions, featuring superior wind resistance, massive coverage capabilities, and rigorous international safety certifications backed by a comprehensive warranty.

Superior Wind Resistance

Reinforced tension springs and wind bars stabilize the curtain during outdoor operation, helping the door maintain reliable movement in changing wind conditions.

Extra-Large Coverage

Designed for wide-span industrial openings, providing clear access for large machinery and heavy logistics traffic.

CE Certified Safety

Manufactured to meet European safety requirements, supporting dependable operation and workplace protection.

5-Year Warranty

Built with durable materials and backed by a comprehensive 5-year warranty for long-term ownership confidence.

Safety and Protection Systems

Airbag Bottom Edge: The inflatable edge detects contact near the closing edge and triggers reversal to reduce the risk of injury or damage.

Photocell Sensors: Infrared beams monitor the doorway and interrupt closing when a person, vehicle, or other object enters the path.

Safety Edge: The pressure-sensitive bottom bar provides a secondary contact-response layer if an obstacle reaches the closing edge.

Emergency Stop: Prominent E-stop button immediately halts all door movement for emergency situations.

Application Scenarios

Ideal for various industrial environments requiring efficient isolation and protection.

High Speed Stacking Door

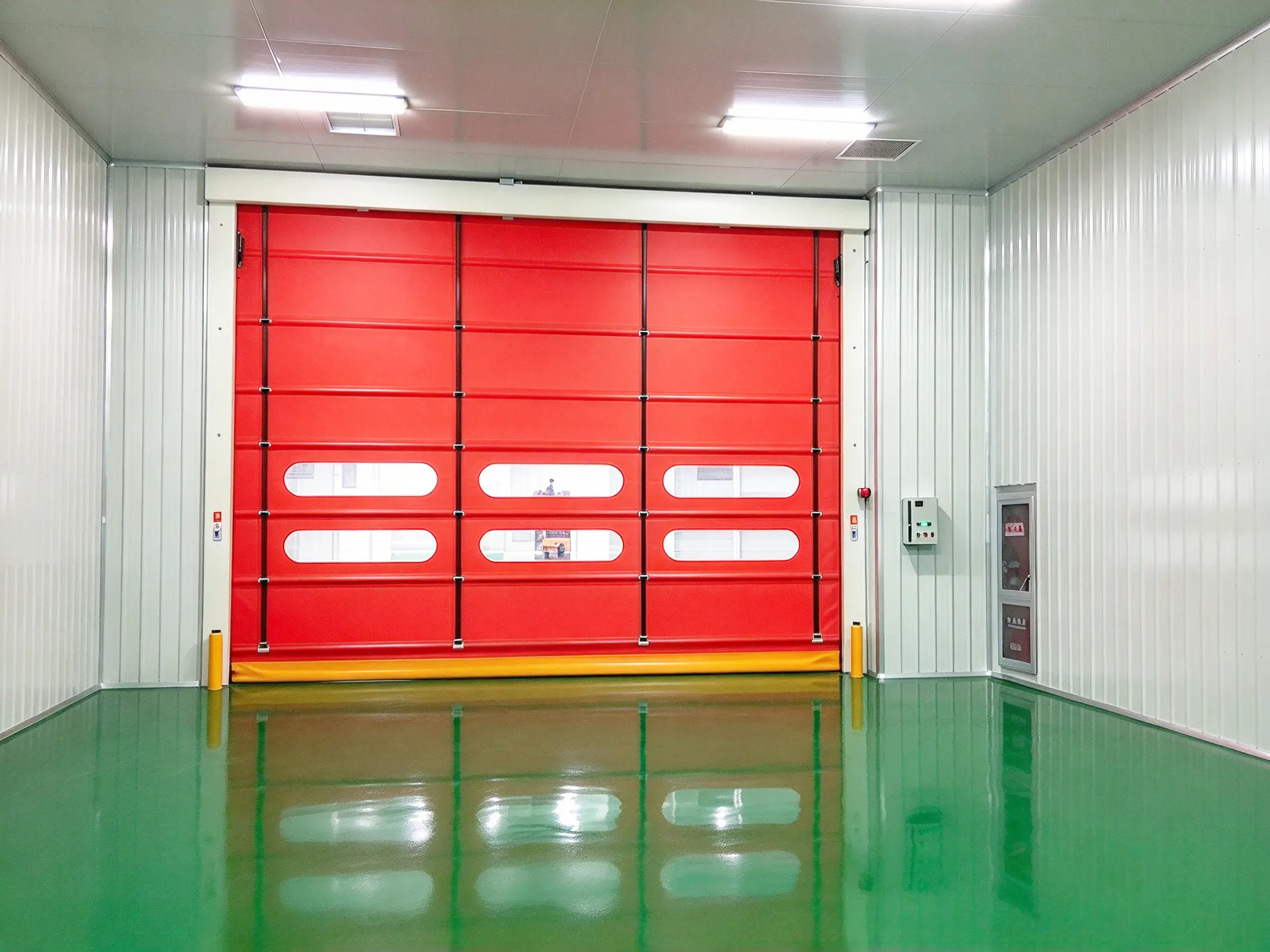

Food & Pharmaceutical

Ensures strict hygiene standards by preventing cross-contamination between zones, offering easy cleaning and durable performance in cold storage areas.

High Speed Stacking Door

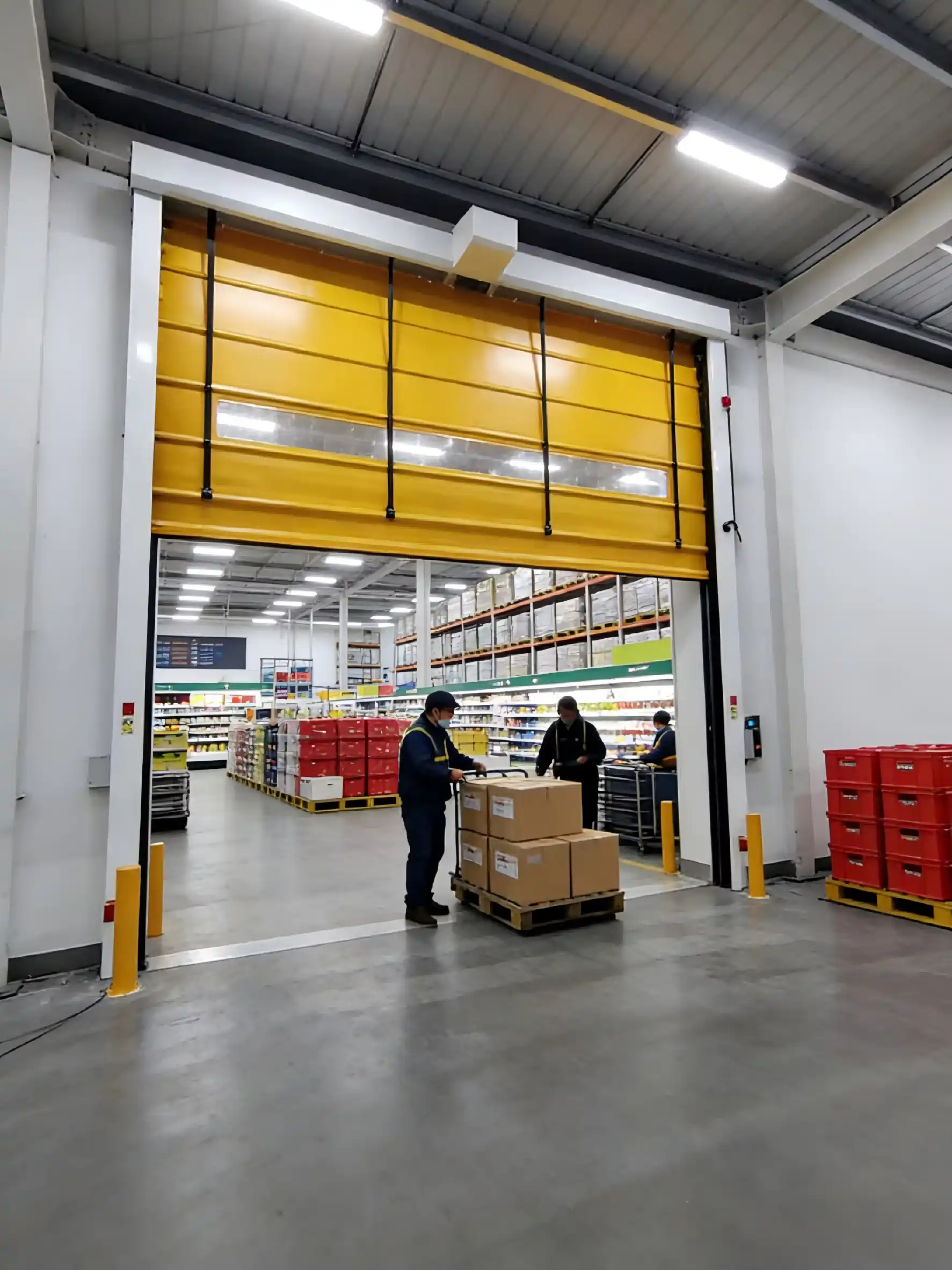

Warehousing & Logistics

Perfect for loading docks and distribution centers, maintaining temperature control while allowing high-frequency traffic of forklifts and personnel.

Related Products

Pvc High Speed Door
View
Pvc High Speed Door →
High Speed Zipper Door
View
High Speed Zipper Door →
Large PVC Flexible Door
View
Large PVC Flexible Door →
High Speed Spiral Door
View
High Speed Spiral Door →

15 Years of Dedicated Craftsmanship

Leveraging over a decade of expertise to deliver superior industrial door solutions.

FACTORY DIRECT

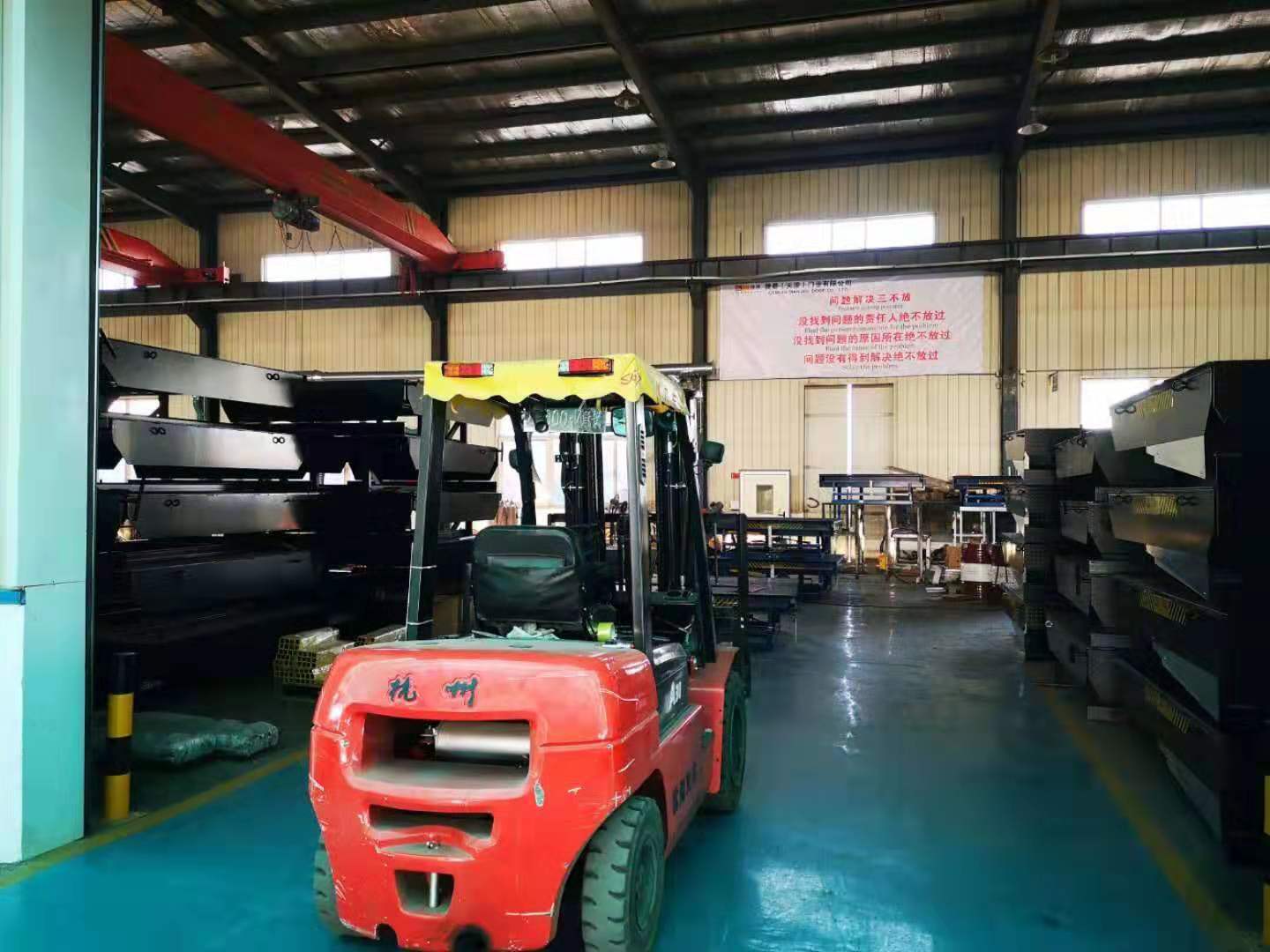

Modern Manufacturing Base

Over 5550 sqm of standardized workshop equipped with advanced automation lines for high-capacity production.

Precision Processing

CNC cutting and automated welding ensure millimeter-level accuracy for every door component.

Strict Quality Control

Multi-stage inspection process including material testing, assembly checks, and final operation tests.

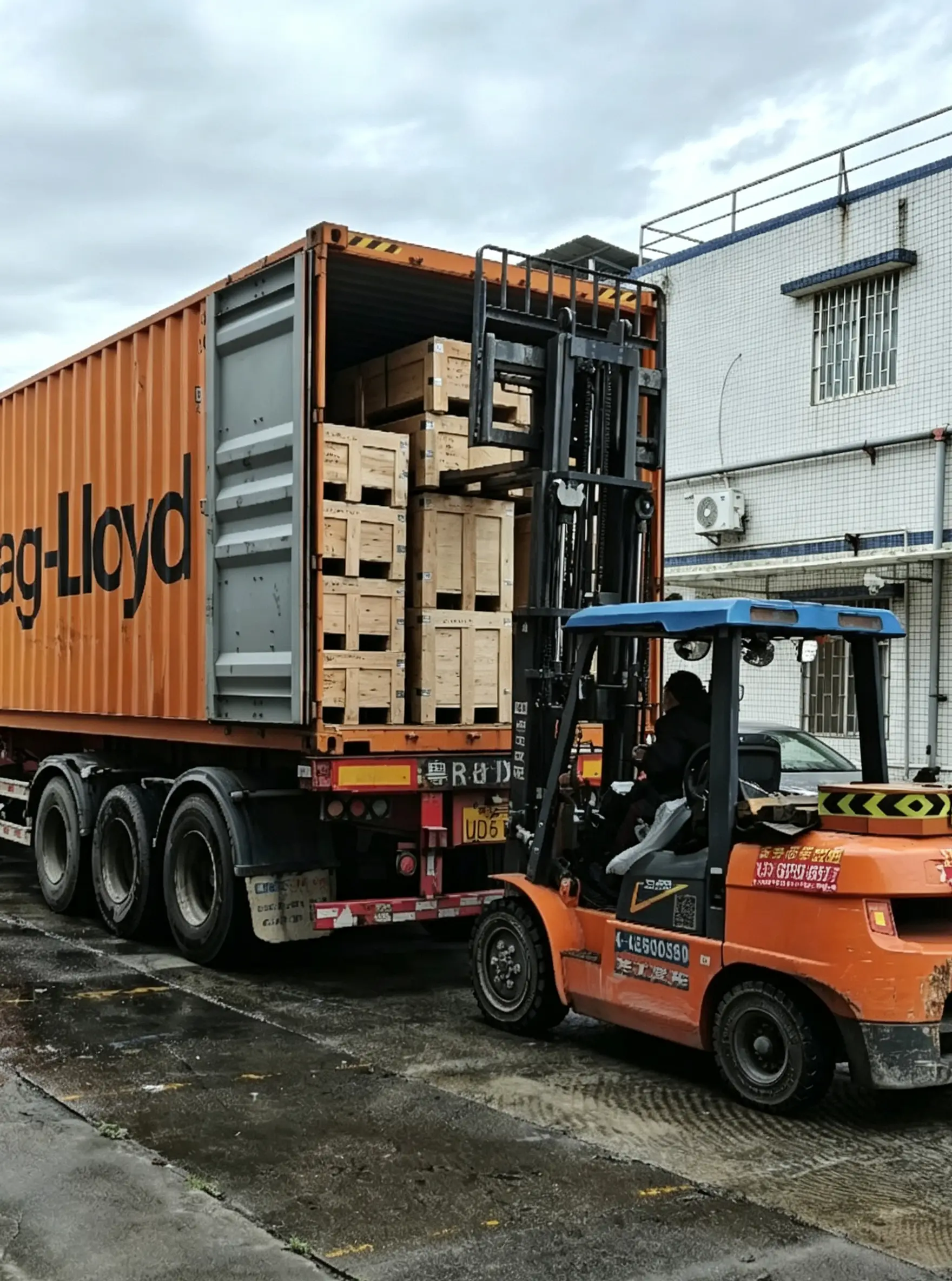

Secure Packaging & Global Shipping

We provide standard reinforced wooden crates and foam protection to ensure products arrive in perfect condition. Additionally, we offer customized packaging solutions tailored to specific dimensions, branding requirements, or special logistics needs, ensuring safe and efficient global delivery.

Explore More Industrial Door Solutions

Different operating environments require specialized structures. Find the perfect match for your facility.

Pvc High Speed Door
→
Insulated Garage Door
→
Accessories Hardware Kit
→
Garage Door Panel
→

KAIYISI Customized Service

We help buyers match the PVC curtain, frame material, motor, and safety configuration to the actual project instead of using a one-size-fits-all solution. Our team supports product selection, technical communication, production, and after-sales service for international projects.

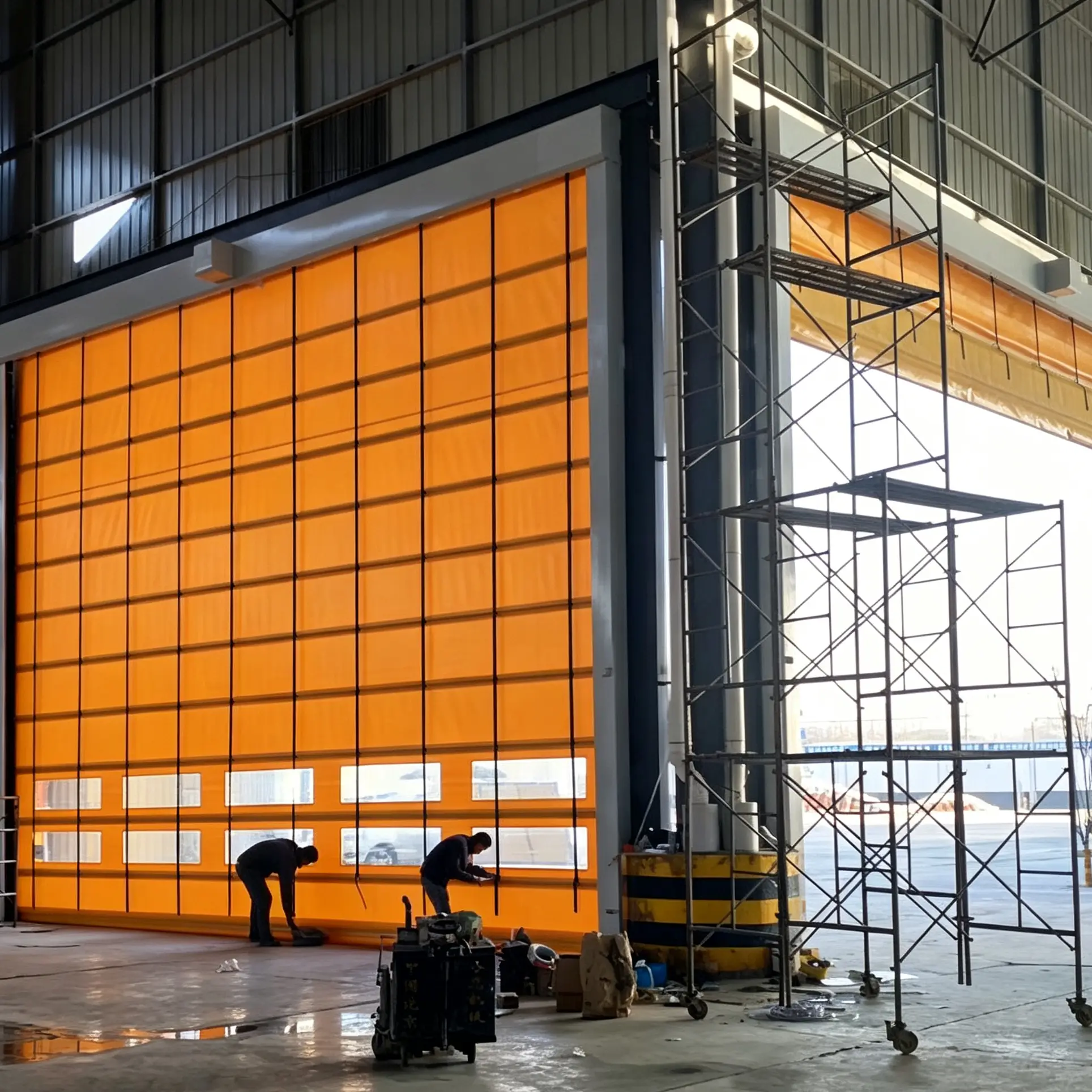

Note: Installation should be performed by qualified technicians. We provide comprehensive technical support to help your team prepare the opening, electrical connections, and control configuration.

QUOTATION CHECKLIST

Information Needed for a Quick Quotation

To ensure the most accurate proposal, please prepare the following technical details.

Door opening width and height
Installation country and industry
Traffic type & daily frequency
Preferred color & frame material
Control method (Radar, Pull cord, etc.)
Safety accessories requirements

Technical Support / FAQ

Q1
What is a PVC high speed door used for?

It is used for factories, warehouses, cleanrooms, food facilities and industrial workshops that need frequent, fast and controlled access.

Q2
How fast does a PVC rapid roll-up door open?

The typical opening speed is 0.8–1.2 m/s. The final speed depends on door size, motor and selected control configuration.

Q3
Can the door size and color be customized?

Yes. The opening size, PVC curtain color, transparent window, frame material, motor and control method can be customized for the project.

Q4
What activation methods are available?

Available options can include push button, radar, pull cord, remote control and geomagnetic sensor, depending on the traffic type and workflow.

Q5
Is the door suitable for cleanroom or food applications?

It can be configured for controlled production areas where reducing dust transfer and unnecessary air exchange is important. Please tell us the cleanliness and operating requirements before quotation.

Q6
What information is needed before quotation?

Please provide the opening size, installation environment, traffic type, required quantity, preferred color and preferred activation method.
